(33,46 Lei + 19% TVA)

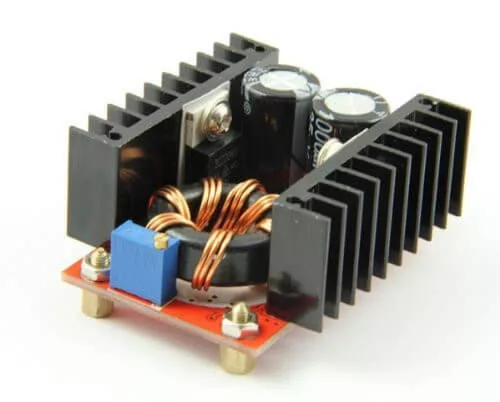

Specification:Module Properties: non-isolated step-up module (BOOST) Input voltage: 10-32V Output voltage: 12-35V (adjustable) Output Current: 10A (MAX) Input Current: 16A (MAX) (Please enhance heat dissipation if more than 10A) Output power: natural cooling 100W (MAX), enhance heat dissipation 150W (MAX)Easy to drive 65W 90W dual-core notebook. Use a 12V battery drive 19V 3.42A notebook, the module temperature about 45 Celsius Conversion efficiency: 94% (measured at Input 16V, output 19V 2.5A) (For reference)Output Ripple: 2% (MAX) 20M-bandwidth Operating Temperature: Industrial (-40 Celsius to +85 Celsius) (ambient temperature exceeds 40 Celsius, lower power use, or to enhance heat dissipation) Full load temperature rise: 45°c No-load current: 25mA typical Voltage regulation: ± 0.5 Load Regulation: ± 0.5% Dynamic response speed: 5% 200uS Size: 65mm x 47mm x 23.5mm Short circuit protection: None (Please Install fuses and protection circuits at Input port.)Input Reverse Polarity Protection: None (Please Series diode at the input port.)Applications:DIY an output adjustable vehicle power supply, connect the 12V input, and output could be 14-35V (adjustable freely), However, the output voltage can not be less than the input voltage Car laptop power supply: connected to 12V power supply, output voltage regulation as your notebook need Boost charger.You can use the 12V power supply to charge battery more than 12V, for example, 24V battery.
