Cadru set Hypercube Evolution (de bază)

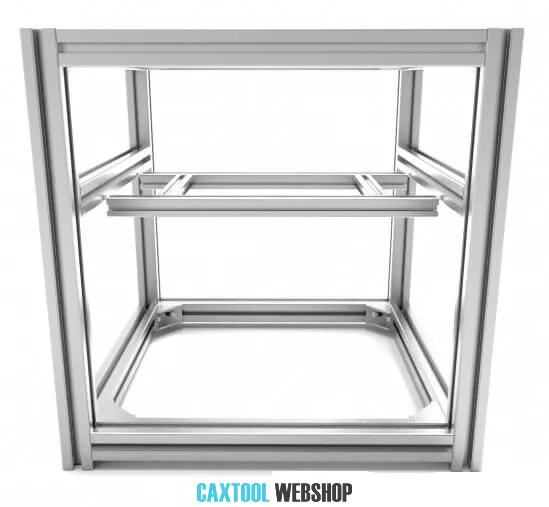

This is a basic frame Kit for one of the most popular DIY Printer Builds at the moment, the Hypercube Evolution.
This frame kit includes only the parts needed to build the printer frame and bed platform, in other words, everything you need to mount all aluminum Extrusions.

Includes:
4 x 3030 T-Slot X Frame extrusion 420mm (Black Anodized)
6 x 3030 T-Slot Y Frame extrusion 410mm (Black Anodized)
4 x 3030 T-Slot Z Frame extrusion 500mm (Optional @ 600mm/700mm/800mm) (Black Anodized)
2 x 2020 V-Slot Bed frame extrusion 255mm (Black Anodized)
2 x 2020 V-Slot Bed frame extrusion 415mm (Black Anodized)
16 x Inside Hidden Corners for 3030(with set screws)
12 x Cast Corner Brackets for 3030
24 x Button Head M6 x 10mm Screws
24 x M6 Drop In Hammer T-Nuts for 3030
4 x Inside Hidden Corners for 2020(with set screws)
