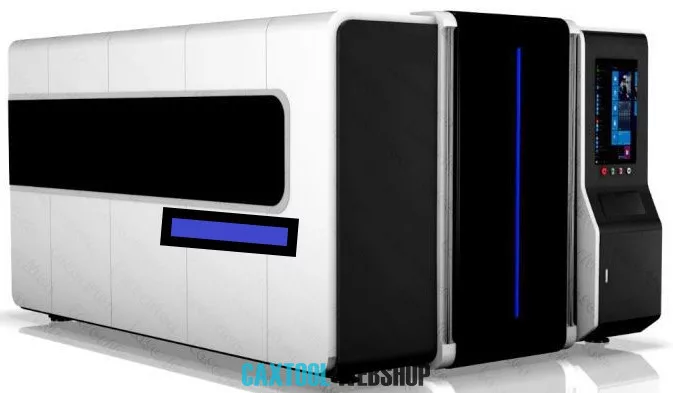

CAXTC LM 3015 Raycus Raycus 1.5kW cu laser cu fibră laser de tăiere
Numar articol:
LNIJ03076
Documente atașate:
Acțiuni proprii
0 bucăți
Livrăm produsele noastre în stoc în 2-4 zile lucrătoare!
Detalii
Specification:
Model number: CAXTC_LM_3015_1.5kW_R_1.0
Laser power : 1500 W
Working area (L*W) : 3000×1500 mm
Machine Outlook :Full enclosure
Fiber Laser source : Raycus RFL-C1500
Laser Head : RayTools BT240
CNC system : FSCUT2000
CAD/CAM : Cypcut
Linear guide : Taiwan PMI
Rack&pinion : Taiwan YYC
Servo motor/drive : Yaskawa (Japanese)
Water chiller : S&A brand CWFL-1500
Auxiliary Parts : Smoke Extraction System (2.2 kW)
Nominal power : 30 kW
X/Y axis Repeated Position Precision: +/- 0.015 mm
Machine size : 2850*4850 mm
Cuttable materials: carbon steel (≤10 mm),stainless steel (≤3 mm), gaévanized steel (<=4 mm), aluminum (≤ 3 mm), brass (≤ 3mm)
