CNC 3 placă de bază la motor pas cu pas ax pentru mașină gravat

Pe stoc

57,74 €

(48,52 € + 19% TVA)

Timp de livrare:

2-4 zile lucrătoare

Documente atașate:

Descriere

Features
Support for steering gear, adjust laser power, low light function, full optocoupler isolation, anti-interference, support for high-power lasers, customized software micro-carving master, new CNC firmware, gold-plated pins, separate PWM interface, external high-power driver, all Action lights.

Specification:
Model :LBA-B-V5

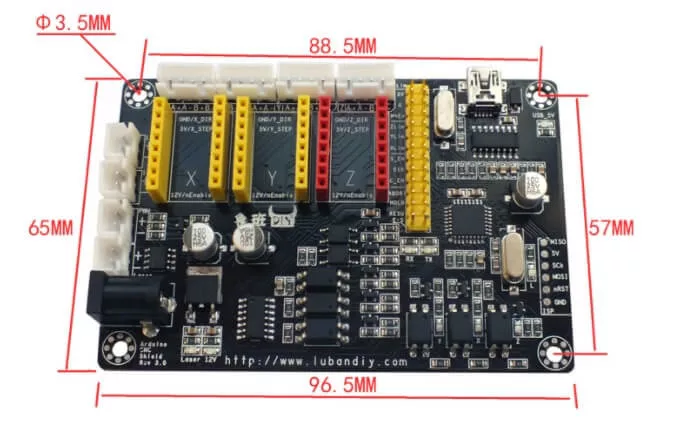

Appearance size :96.5X65(MM)
Hole spacing size: 88.5X57(MM)
Laser power: 100mW to 10W supports PWM output (unlimited power)
Power supply :12V
Axes :XYZ three axes, with XY axis driver by default
Stepper motor :4-wire 2-phase, 6-wire 2-phase
Motor subdivision :16 times
Prompt light: Power, laser, XYZ axis status, data transfer, programming, USB
Limit switch :can be connected to XYZ limit switch
Motor power :single motor maximum 2A

Info produs

Masa:

60 g/bucăți
