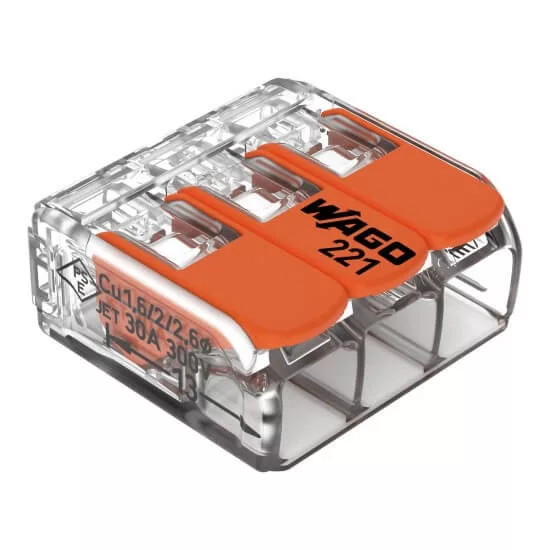

Conectro WAGO 221-613
5,76 Lei
(4,76 Lei + 21% TVA)
Conectro WAGO 221-613
5,76 Lei
(4,76 Lei + 21% TVA)
Numar articol:
EHGS04361
Timp de livrare:
2-4 zile lucrătoare
Acțiuni proprii
107 bucăți
Livrăm produsele noastre în stoc în 2-4 zile lucrătoare!
Detalii
Specification:
Nominal current:41 A
Nominal current - rounded value:41 A
Dim (L x W) 21.10 mm x 22.90 mm
Manufacturer part #:221-613
Colour:Transparent, Orange
Length:21.10 mm
Width:22.90 mm
Connection:Pull spring
Series:221
Nominal voltage:450 V
Cross section (flexible) (max.):6 mm²
Cross section (flexible) (min.):0.50 mm²
Cross section (inflexible) (max.):6 mm²
Cross section (inflexible) (min.):0.50 mm²
Number of pins:3
Insulation material:Plastic
Stripping length:11 mm
AWG:24 - 12
Temperature range:up to +105 °C
Product type:Connector clip
