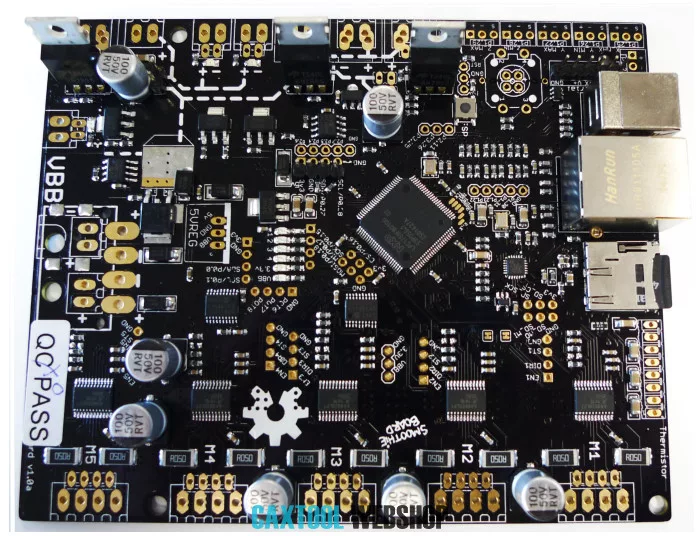

Controler placa 5X Smoothieboard v1.1 32 Bit

Smoothieboard is a controller board for digital fabrication machines. It is made to be used in 3D printers ( Reprap ), laser cutters, and CNC mills.
Compared to most existing boards, it is based on a more powerful microcontroller, is much simpler to configure and use, and offers many new features.

BASIC features
All-in-one, ready to use controller board
5 stepper motors drivers, 1/32 microstepping
3 small MOSFETS
3 big MOSFETS
4 thermistor inputs ( for reading temperature )
6 end-of-course endstop inputs
ethernet connector

Advantages
32bits ARM-Cortex M3 microcontroller, running at 120Mhz
Integrated 4GB micro-SD card
Easy configuration by editing a file on the micro-SD card
Ethernet support, presenting a Web interface, and a Telnet interface ( for Pronterface )
Direct access to the micro-SD card when connected to a computer via USB
Concurrent acces via serial using host software, on the same USB cable
Digital current control of stepper motor drivers ( no more tweaking potentiometers with a screwdriver )
More precise and higher speed movement
More correct and longer-ahead prediction of acceleration and movement
Multiple arm solutions ( cartesian, delta, h-bot, etc ... )
Hostless usage possible with a control panel
Good heatsinking, allowing full use of the stepper drivers potential
Many configuration options
SPI, I2C and serial port, free GPIO pins available for extension
Can be easily interfaced with external drivers for use with more powerful stepper motors
Can control a laser tube for laser cutting
Can control a spindle and other accesories for a CNC mill.
Very active community and development
Rich documentation ( see bellow )
Modular firmware making it easier to add features and to integrate into new machine designs
Provided pre-flashed and ready to use
RepRap compatible

Open-Source HARDWARE
The Smoothie project's goal is to create a firmware and controller card for digital fabrication machines that works on as many different machines as possible. We want it to be simple to use and easy to extend, so it can be useful to as many projects, people, and uses as possible.

The controller card, as well as the firmware it runs, are both free ( meaning GPL-licensed ), and produced by the Smoothie community. The card descends in part from other free electronics produced by the RepRap community. The firmware itself descends in part from GRBL.

You are free ( and very welcome ) to use, copy, better and redistribute all of the design and code files under the same license.

Smoothie comes in three main variants:
3X, for laser cutters and CNC mills : has 3 stepper motor drivers and two small MOSFETs.
4X, for 3D printers, laser cutters and CNC mills : has 4 stepper motor drivers, two small MOSFETs and two big MOSFETs, as well as Ethernet support.
5X, for 3D printers ( including dual extruder setups ), laser cutters and CNC mills : has 5 stepper motor drivers, three small MOSFETs and three big MOSFETs, as well as Ethernet support.

Each variant comes in two versions indicating wether their connectors are pre-soldered or not ( -X and -XC ) : for exemple 4X comes with no pre-soldered connectors, and 4XC comes with it's connectors pre-soldered.
This page is for the 5X version ( 5 stepper motor drivers, three small MOSFETs and three big MOSFETS, no pre-soldered connectors and Ethernet support ).

LINKS:
Smoothieware, documentation
Step-by-step guide to setting up a 3D printer with Smoothie
Wiki page
Schematic for wiring
IRC
Forum
Mailing list
Smoothie @ Github
Smoothie @ Kickstarter
Smoothie @ Hackaday

Specification:
Version:1.1
Stepper motors drivers:5
Small MOSFETS:3
Big MOSFETS:3
Ethernet connector:Yes
