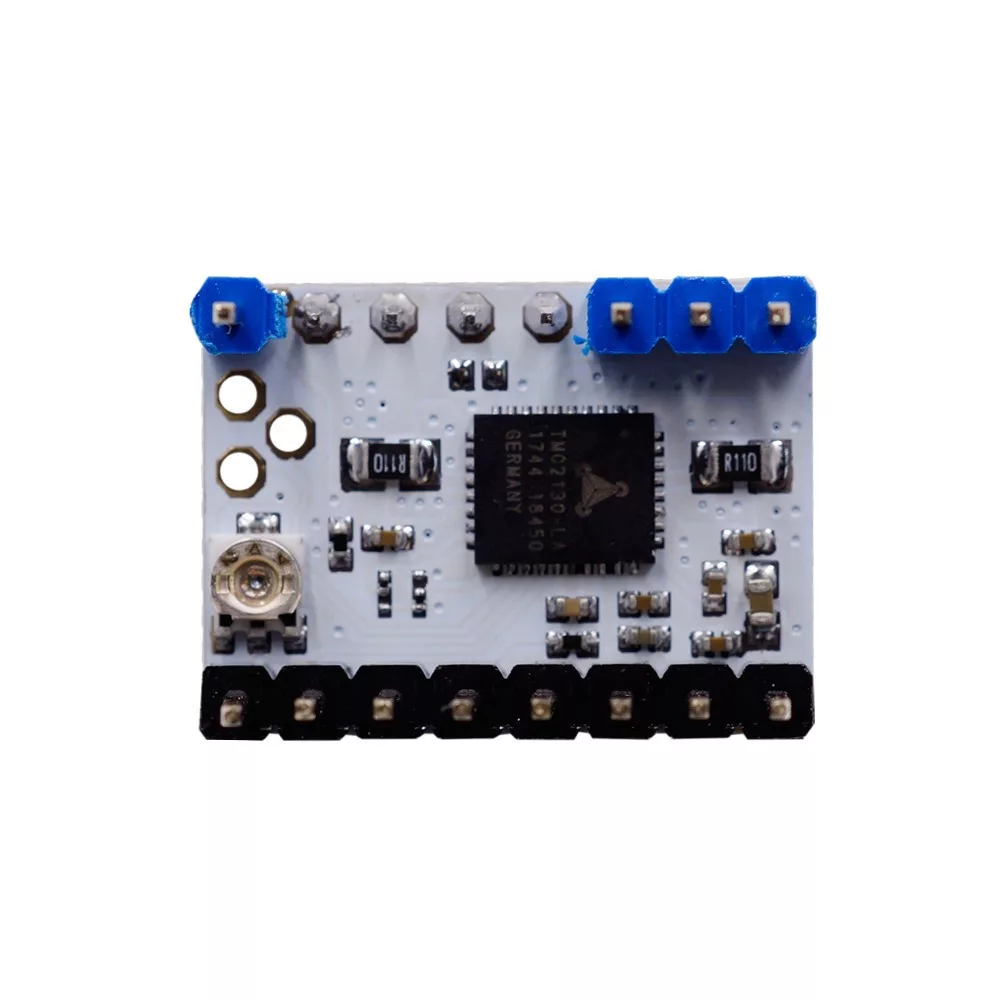

Controller motor pas cu pas TMC2130 V1.1

Pe stoc

17,47 €

(14,68 € + 19% TVA)

Timp de livrare:

2-4 zile lucrătoare

Descriere

1. 1.2A two-phase stepper motor single-phase current (peak 2.5A); adjustable motor operating current.
2. Only support SPI interface control.
3. Motor input voltage range: 4.75 ~ 46V
4. Logical interface input voltage: 3 ~ 5V
5. 256 subdivision.
6. Maximum efficiency and optimum motor torque operation without noise.
7. High-precision sensorless motor load detection.
8. Reduce energy consumption by 75%.
9. High load drive with no step out.

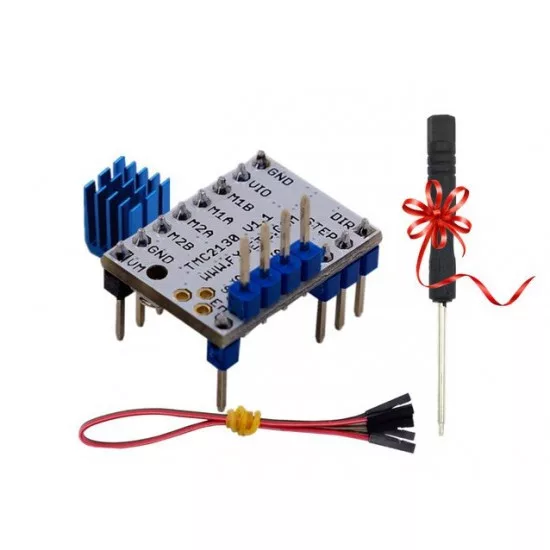

Package Included:
1× TMC2130 V1.1 Stepper Motor Driver Module
1×Heat Sink
1×Screwdriver
1x 4pin cable

Info produs

Masa:

8 g/bucăți
