Convertor 200W DC-DC Boost 6-35V la 6-55V 10A Step Up Voltage

Pe stoc

12,12 €

(10,19 € + 19% TVA)

Timp de livrare:

2-4 zile lucrătoare

Descriere

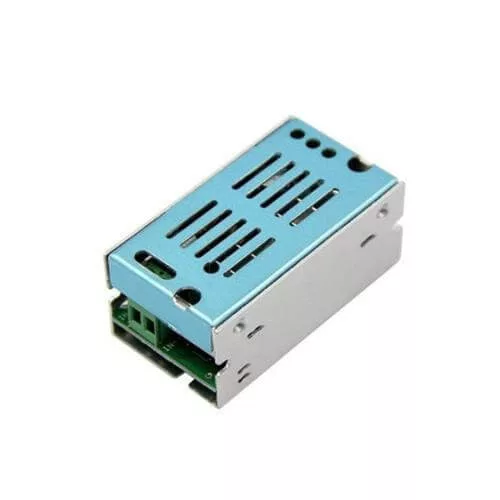

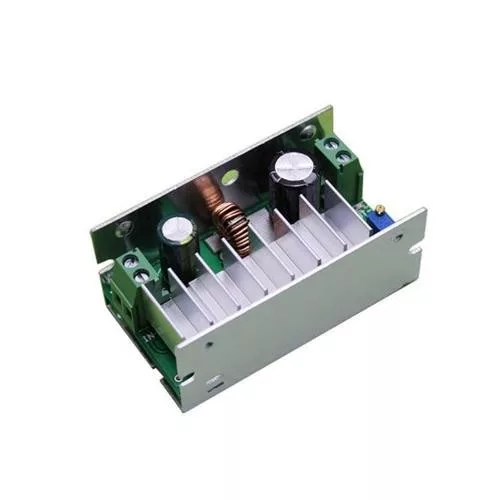

200W DC-DC Boost Converter 6-35V to 6-55V 10A Step Up Voltage Charger Power with Shell

Specification:
Modules nature: Non-isolated step-up (Boost)
Rectification: Non-synchronous rectification
Input voltage: 6V-35V
Output voltage: 6V-55V (Must ensure that set the output voltage is higher than the input voltage)
Input current: 10A (max)
Output current: 7A (max)
Power : 200W MAX (the input voltage higher than 30V )
Conversion efficiency: 97.6%( test at 32V input,output 45V/3A)
Dimension: 70mm*39mm*32mm

Application:
DIY a mobile power supply
Boost charger
Power supply for electronic equipment

Info produs

Masa:

66 g/bucăți
