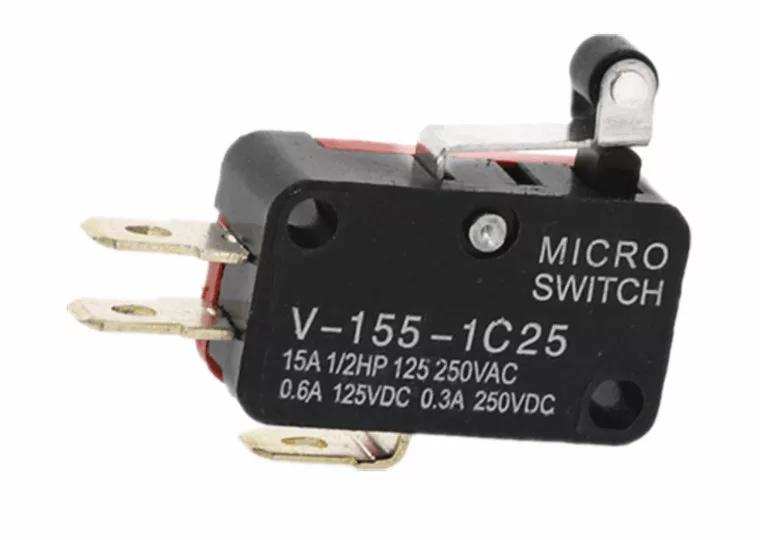

Întrerupător de limită cu braț scurt V-155-1C25

Descriere

Specification:
Product Name: Micro Switch
Model No.: V-155-1C25
Actuator Action: Momentary
Actuator Type: Short Hinge Roller Lever
Rating: 15A, 1/2HP, 125/250VAC
0.6A,125VDC; 0.3A, 250VDC
Contact Configuration: 1NO,1NC(SPDT)
Switch Body Size :~2.8 x 1 x 1.6cm / 1.1" x 0.39" x 0.63"(L*W*H)
Fixing Holes Dia.: ~0.32cm / 0.13"
Button Height: ~0.3cm / 0.12"
Actuator Size: ~1.4 x 0.45cm / 0.55" x 0.18"(L*W)
Terminal Width: ~0.47cm / 0.19"
Material: Plastic & Metal
Main Color: Red & Black
Package Content: 1/10Pcs x Micro Switch
