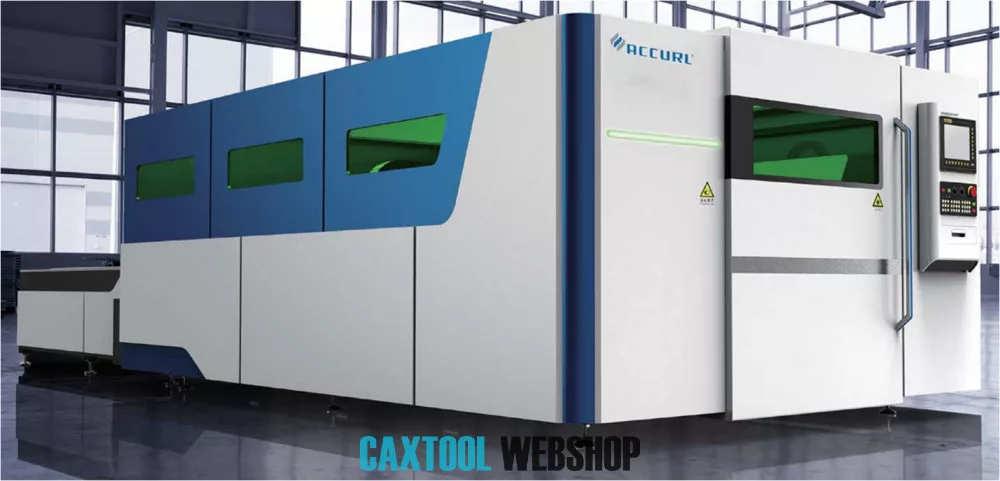

Mașină de tăiere cu laser cu fibră CAXTC Accurl Smart 3015 6 kW
Numar articol:
LCCU03073
Documente atașate:
Acțiuni proprii
0 bucăți
Livrăm produsele noastre în stoc în 2-4 zile lucrătoare!
Detalii
Specification:
Model number: CAXTC_Accurl_3015E_6kW_1.0
Laser power : 6000 W
Working area (L*W) : 3000×1500 mm
Machine Outlook : Full enclosure
Fiber Laser source : IPG YLS 6000K Fiber resonator, Power 6kW
Laser Head : PRECITEC Cutting head ProCutter 2.0
CNC system : Hypcut 17" Multi-Touch FSCUT8000C Twincat control system
CAD/CAM : Hypcut 2D with automatic nesting
Linear guide : Rexroth (Germany)
Rack&pinion : YCC/Apex (Taiwan, China)
Servo motor/drive : Yaskawa (Japanese)
Water chiller : Tong Fei (China)
Auxiliary Parts : Smoke Extraction System (TODC -6L/6000m³/h ).
Machine weight : 12 t
Machine size (L*W*H mm): 8000*2600*2250
X/Y axis Repeated Position Precision : +/- 0.015 mm
Cuttable materials: stainless steel (≤20 mm), alumínium (≤ 15 mm)
