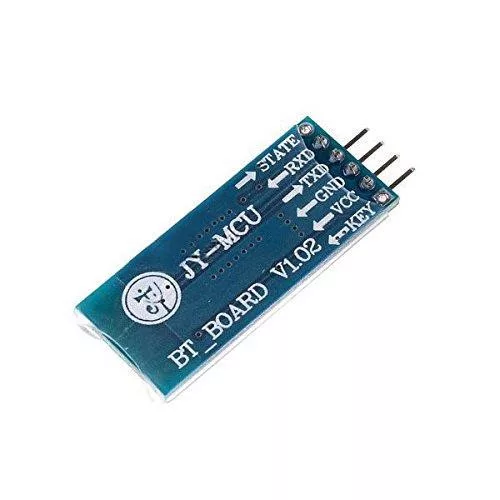

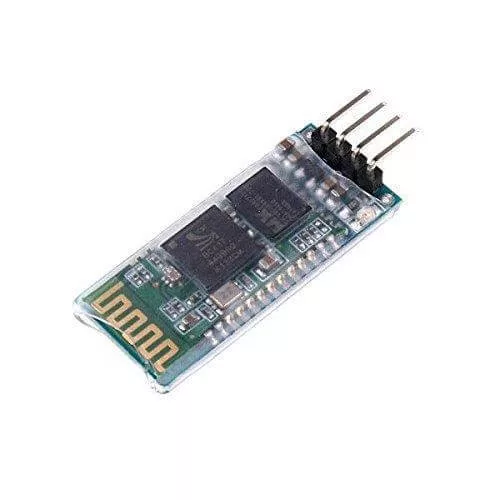

Modul Bluetooth (Slave) HC-06 4pin fără buton

HC-06 4pin Bluetooth Module (Slave) No Button
HC-06 Wireless Bluetooth Serial Transceiver Module Slave Serial Communication For Arduino

Feature:
Module: HC-06 slave
Interface: VCC- GND- TXD- RXD(reserve LED status output pin- and MCU can judge the Bluetooth connection state through it)
3.3V LDO
Input voltage: 3.6V - 6V(never over 7V)
Input current: 30mA(unpaired) 10mA(paired)
Interface level: 3.3V(you can directly connect a variety of SCM 51- AVR- PIC- ARM- MSP430- etc. 5V microcontroller can also be directly connected without MAX232)
Effective distance: 10M(open area)
Communication format: 8 data bits / 1 stop bit / without parity
You can set the baud rate- name and pair password by AT commands when there is no bluetooth connection
This module is slave- it can be paired with computer- bluetooth master- mobile phone- PDA- PSP and so on
Size: 3.57 x 1.52cm
