Modul ecran 0.96" Inch I2C IIC OLED LCD 4pin Albastru
54,50 Lei
(45,04 Lei + 21% TVA)
Modul ecran 0.96" Inch I2C IIC OLED LCD 4pin Albastru
54,50 Lei
(45,04 Lei + 21% TVA)
Numar articol:
EHGS00626
Timp de livrare:
2-4 zile lucrătoare
Acțiuni proprii
3 bucăți
Livrăm produsele noastre în stoc în 2-4 zile lucrătoare!
Detalii

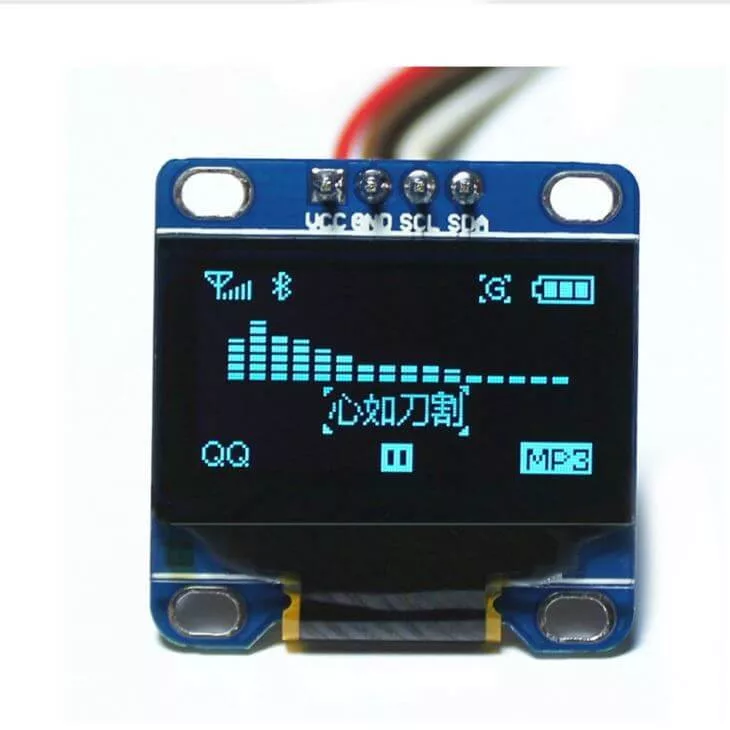

Product name: 0.96" Inch Blue I2C IIC OLED LCD Module 4pin (with VCC GND)
Product Description
Size: 0.96
Resolution: 128X64
Color: Blue Viewing angle: greater than 160 degrees
Supported platforms: for arduino, 51 series, MSP430
Series, STIM32 / 2, SCR chips
Low power consumption: 0.04W during normal operation Support wide voltage: 3.3V-5V DC
Working temperature: -30-80 degrees

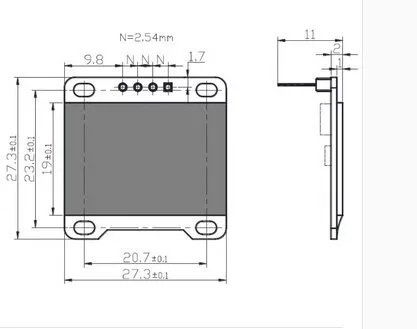

Volume: 27MM * 27MM * 4.1MM
Driver IC: SSD1306
Communication: IIC, only two I / O ports
No font: The software takes word modulo
Backlight: OLED self light, no backlight Interface:
VCC: 3.3-5V GND: Ground
SCL: Serial Clock
SDA: Serial Data
