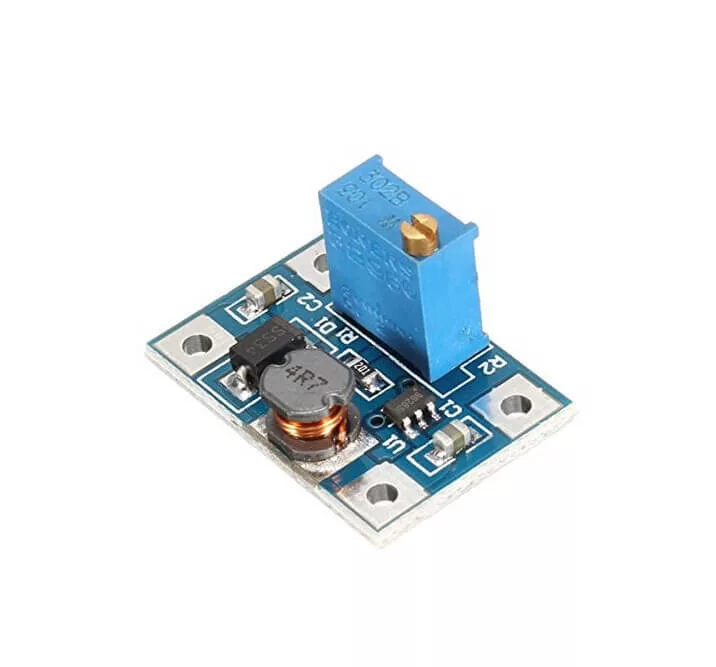

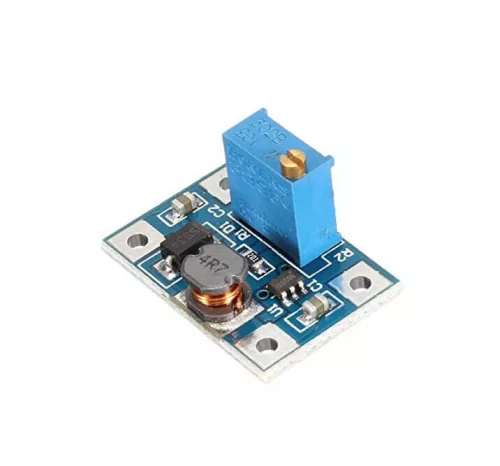

Modul ridicator tensiune SX1308 28V 2A 1.2Mhz

Pe stoc

2,90 €

(2,44 € + 19% TVA)

Timp de livrare:

2-4 zile lucrătoare

Descriere

SX1308 Adjustable Power Supply Step-Up 28V 2A 1.2Mhz Booster Module DC

Description:
LC SX1308 booster module carrying SX1308 chip, its packagnig is small, and high efficiency. The output power can be adjust, maximum can arrive 28V and its interior integrate the lowest RDS internal resistance 100mΩ metal oxide semiconductor field effect transistor (mosfet), which can realize large current output of up to 2A. It widely used in 3G network products, digital products, mobile power supply,battery power supply, equipment, etc.

Features:
Oscillation frequency 1.2MHz
Efficiency is as high as 95%
Circuit has short circuit protection, overheating protection function
10k to adjust potentiometer, adjust the output voltage

Parameters:
Maximum input voltage: DC 2-24V
Maximum output voltage: DC 2-28V
Switching frequency: 1.2MHz
Maximum current output: 2A

Info produs

Masa:

4 g/bucăți
