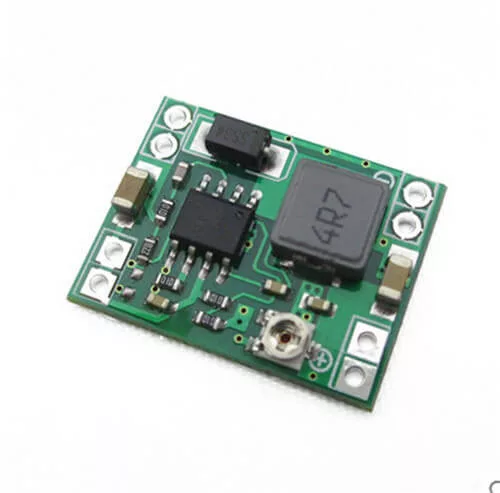

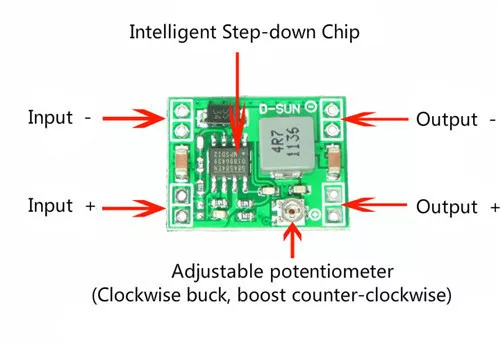

MP1584EN Mini LM2596 DC-DC 3A step-down Buck converter 24V - 12v 9V 5V 3V

Descriere

Specification:
Input voltage: 4.5 V to 28 V
Output voltage: 0.8 V to 20 V
Output current: 3 A (maximum)
Conversion efficiency: 92% (maximum)
Output ripple: less than 30 mV
Switching frequency: 1.5 MHz (highest), typically 1 MHz
Operating temperature: -45 ℃ to 85 ℃
Size: 22 mm x 17 mm x 4 mm
Application: DIY mobile power, monitor power supply, power buggies, camera power supply, car power, communications equipment supply,etc.
