Panou control TB6560 3A CNC Router Single Axis controller motor
82,50 Lei
(68,18 Lei + 21% TVA)
Panou control TB6560 3A CNC Router Single Axis controller motor
82,50 Lei
(68,18 Lei + 21% TVA)
Numar articol:
EHGS01350
Timp de livrare:
2-4 zile lucrătoare
Acțiuni proprii
1 bucăți
Livrăm produsele noastre în stoc în 2-4 zile lucrătoare!
Detalii

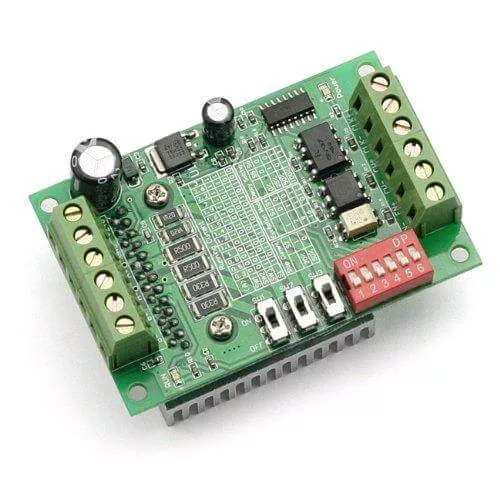

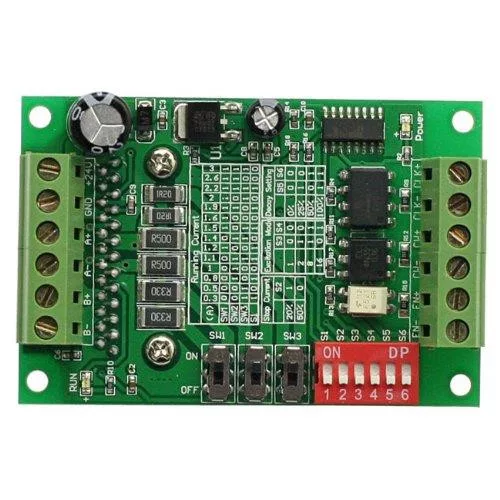

CNC Router Single 1 Axis 3A TB6560 Stepper Motor Driver Board Controller Kit
Features:
Working voltage DC 10V-35V. Recommended to use a switching power supply DC24V power supply.
6N137 high-speed optical coupling, guarantee high speed without losing step.
Using the TB6560AHQ chip with low voltage shutdown, overheating stop and overcurrent
protection circuit to ensure optimal performance.
Rated maximum output: ± 3A, peak 3.5A.
For two-phase within 42,57 stepping 3A / four-phase / of line four / six-wire stepper motor, and is not suitable for more than 3A stepper motor.
Automatic half current function.
Subdivision: whole step, half-step, step 1/8, 1/16 step, a maximum of 16 subdivisions.
Specifications:
Working voltage:DC 10-35V
Rated maximum output: ± 3A, peak 3.5A.
Main color:Green
Size:75 x 50 x 33mm
