Piulita cu filet trapezoidal IGUS drylin TR10X2 JFRM-2525TR10X2

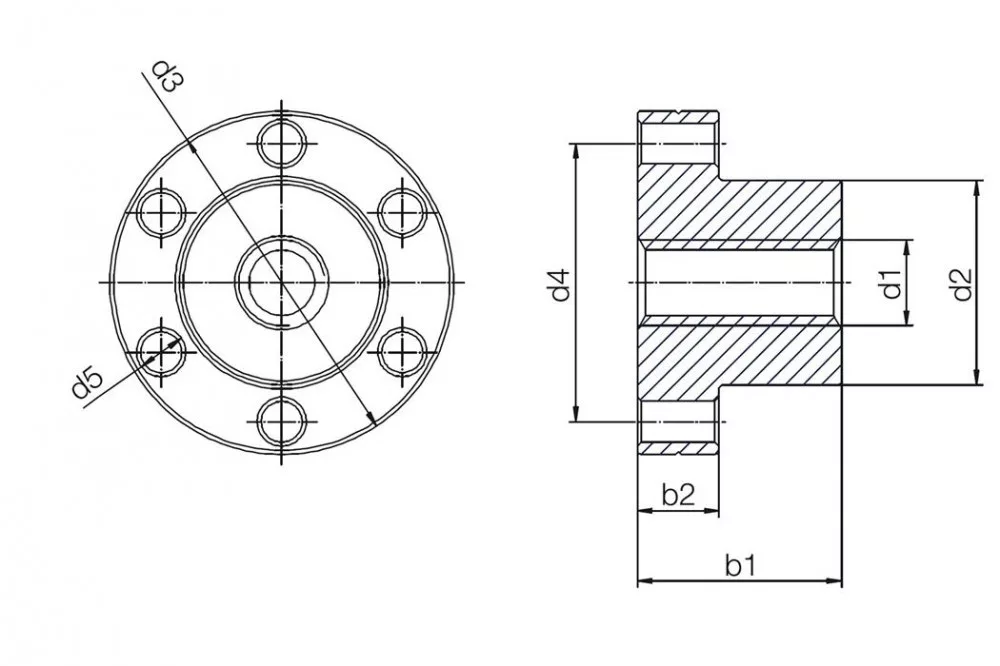

Specification:
Thread:Tr10X2
Ø d1:10,00 mm
Ø d2:25,0 mm
Ø d3:42,0 mm
d4:34,0 mm
Ø d5:5,0 mm
b1 Total length:25,00 mm
b2:10,0 mm
Effective supporting surface:353 mm²
Material:iglidur® J
Thread direction:Right-hand thread
Thread type:Trapezoidal threads
Weight:28,70 g
Density:1.49 g/cm3
Color:yellow
Max. moisture absorption (at 23 °C/73 °F, 50% r.h.):0.3 Wt.-%, test method DIN 53495
Max. water absorption:1.3 Wt.-%
With spanner flat:No
Modulus of elasticity:2,400 MPa, test method DIN 53457
Flexural strength (at 20 °C/68 °F):73 MPa, test method DIN 53452
Max. recommended surface pressure (at +20 °C/68 °F):4,0 MPa
Shore-D Hardness:74, test method DIN 53505
Max. long-term application temperature:90 °C
Lower application temperature:-20 °C
Max. stat. load capacity, axial:1 414 N
Efficiency [η]:20-39
Coefficient of friction [µ]:0,1-0,25
Heat conductivity:0.25 W/(m ⋅ K), test method ASTM C 177
Thermal expansion coefficient (at 23°C/73°F):10 K-1 ⋅ 10-5, test method DIN 53752
Specific volume resistance:> 1013 Ωcm, test method DIN IEC 93
Surface resistance:> 1012 Ω, test method DIN 53482
Mould-free according to DIN EN ISA 846 Procedure A:Yes
