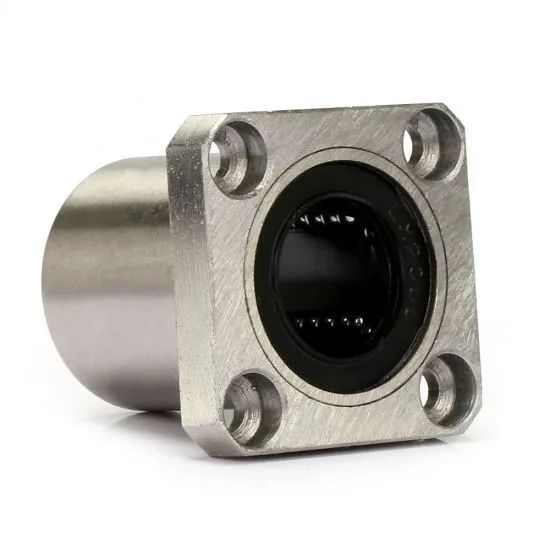

Rulment liniar cu flansa LMEK8UU
42,53 Lei
(35,15 Lei + 21% TVA)
Rulment liniar cu flansa LMEK8UU
42,53 Lei
(35,15 Lei + 21% TVA)
Numar articol:
MBNS03166
Timp de livrare:
2-4 zile lucrătoare
Model 3d descărcabil:
Tip:
LMEK..UU
Diametre interne:
8mm
Acțiuni proprii
11 bucăți
Livrăm produsele noastre în stoc în 2-4 zile lucrătoare!
Detalii

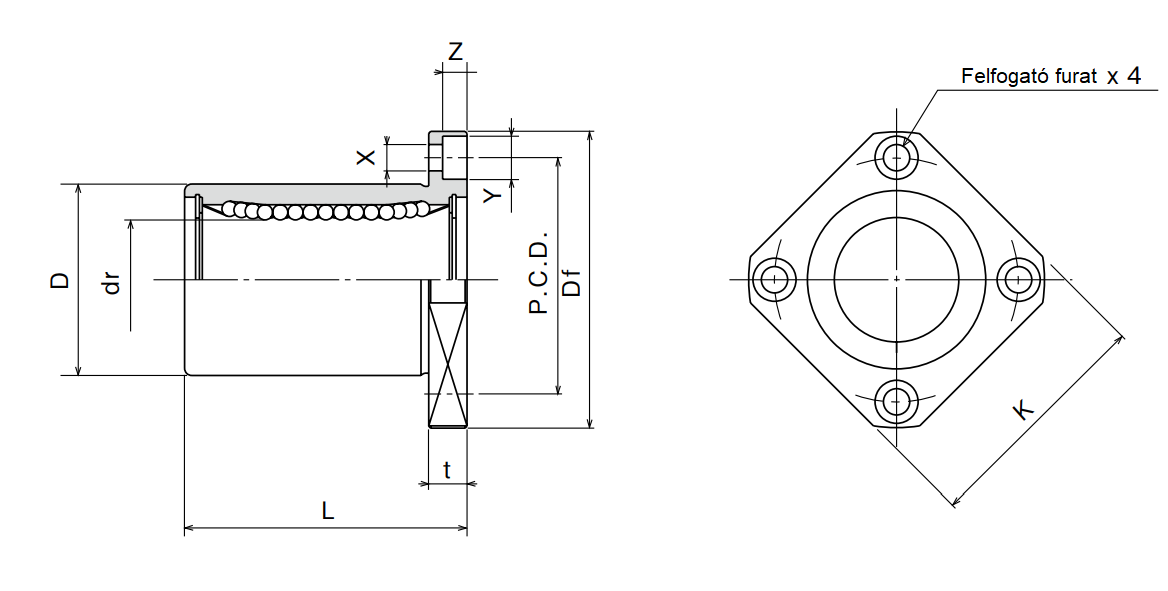

Specification:
Type: LMEK
Flange type: Square flange
Size standard: According to ISO - European standard
Length: Simple - Standard
d - Inner diameter: 008 mm
Inner diameter tolerance: + 0.008 / 0 mm
D - Outer diameter: 016 mm
Outer diameter tolerance: 0 / -0.008 mm
L - Total length: 025 mm
Total length tolerance: ± 0.3 mm
Df - Flange diameter: 32mm
K - Edge flattening: 25 mm
t - Flange thickness: 5 mm
PCD - Flange hole spacing: 24 mm
Mounting hole: 3.5 x 6 x 3.1 mm
Preload: Standard
Layout: Standard
Eccentricity: 0.012 mm
Number of rows of balls: 4 pcs
Application temperature: -20 / +80 ° C
Static load: 00402 N
Dynamic load: 00265 N
Weight: 0.033kg
