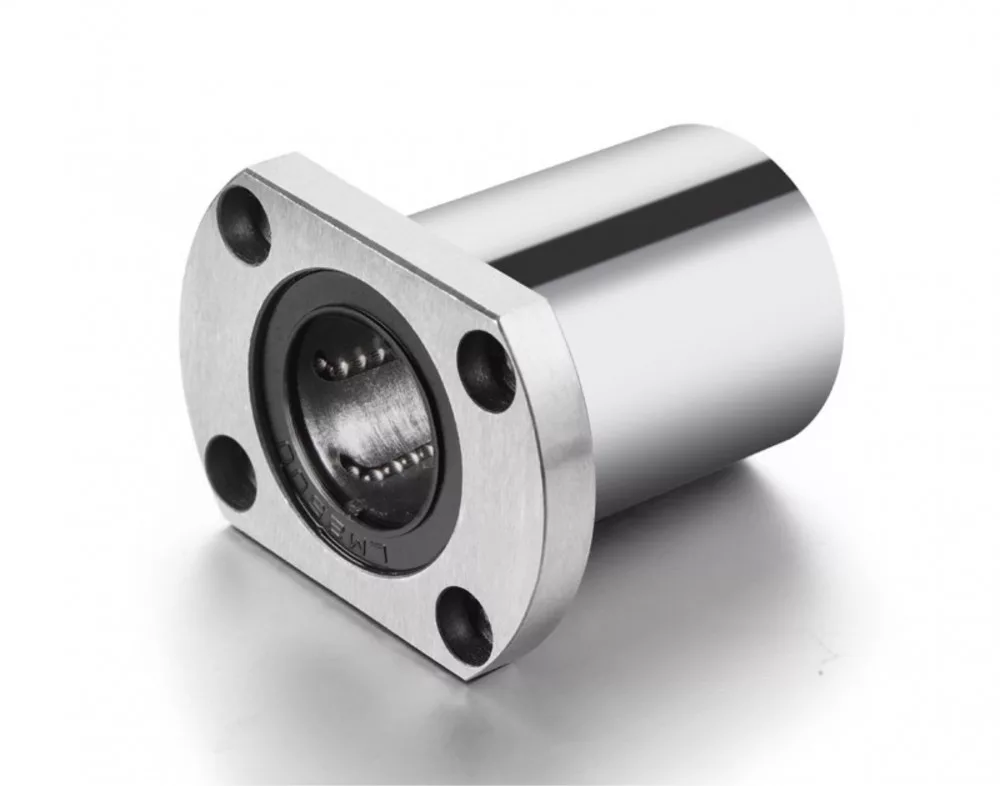

Rulment liniar cu flansa LMH10UU

Descriere

Specification:
Type: LMH
Flange type: Flattened flange
Size standard: According to JIS - Japanese standard
Length: Simple - Standard
d - Inner diameter: 010 mm
Inner diameter tolerance: 0 / -0.009 mm
D - Outer diameter: 019 mm
Outer diameter tolerance: 0 / -0.013 mm
L - Total length: 029 mm
Total length tolerance: ± 0.3 mm
Df - Flange diameter: 40mm
W - Edge flattening: 25 mm
t - Flange thickness: 6 mm
A - Hole pitch: 29 mm
F- Hole pitch: - mm
Receiving hole: 4.5 x 7.5 x 4.1 mm
Preload: Standard
Layout: Standard
Eccentricity: 0.012 mm
Number of rows of balls: 4 pcs
Application temperature: -20 / +80 ° C
Static load: 00549 N
Dynamic load: 00372 N
Weight: 0.064kg
