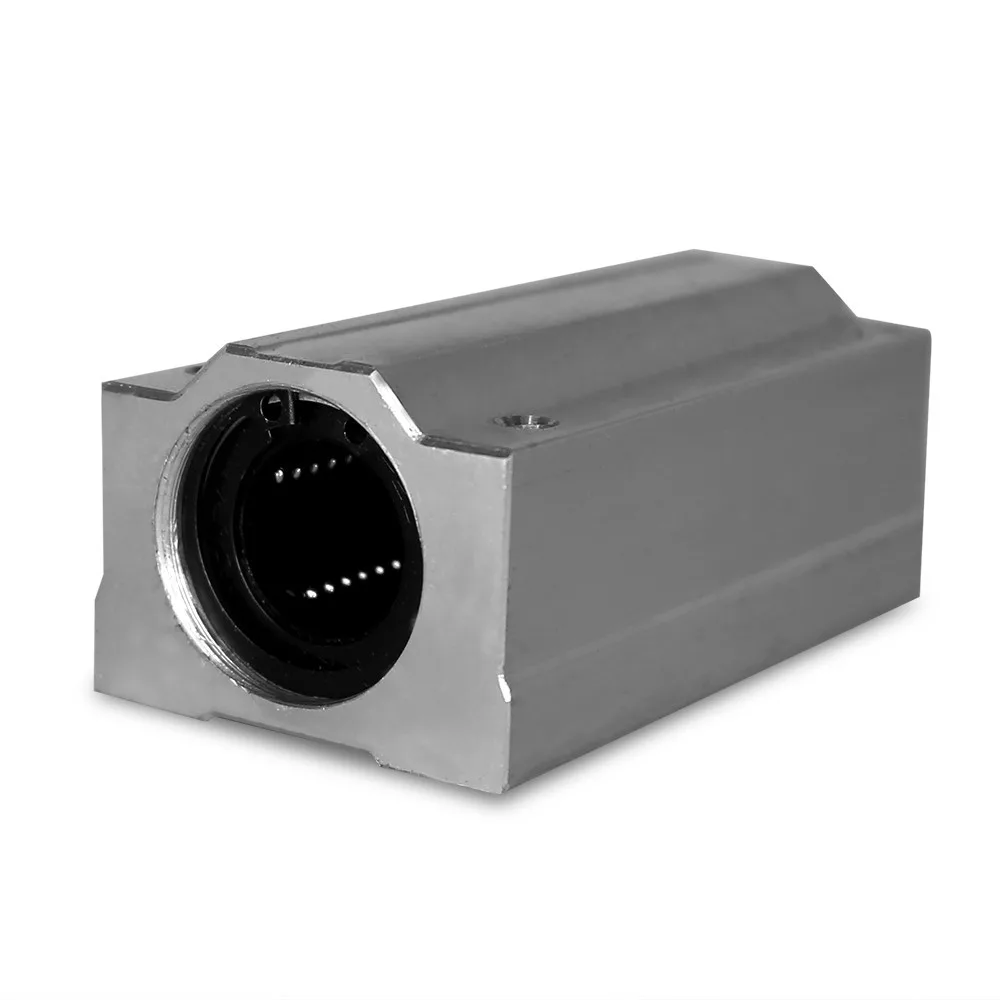

Rulment liniar dublu in carcasa SC16LUU

Pe stoc

14,24 €

(11,96 € + 19% TVA)

Timp de livrare:

2-4 zile lucrătoare

Model 3d descărcabil:

Tip:

SC..LUU

Diametre interne:

16mm

Descriere

Specification:
Type: SC-L - closed housing
d - Inner diameter: 16 mm
h - Shaft height: 19 mm
H - Total height: 038.5 mm
W - Total width: 050 mm
L - Total length: 085 mm
B - Hole pitch: 036 mm
C - Hole spacing: 060 mm
Through fixing screw: M4
Fixing thread from below: M5X12
C0 - Static load capacity: 02350N
C - Dynamic load capacity: 1230N
Bush type: 2 x LM 16 UU
Applicability temperature: -20 / 80°C
Unit type: Four arresting holes, Double ball bushing unit
Dimensional standard: JIS - Japanese standard

Info produs

Masa:

410 g/bucăți
