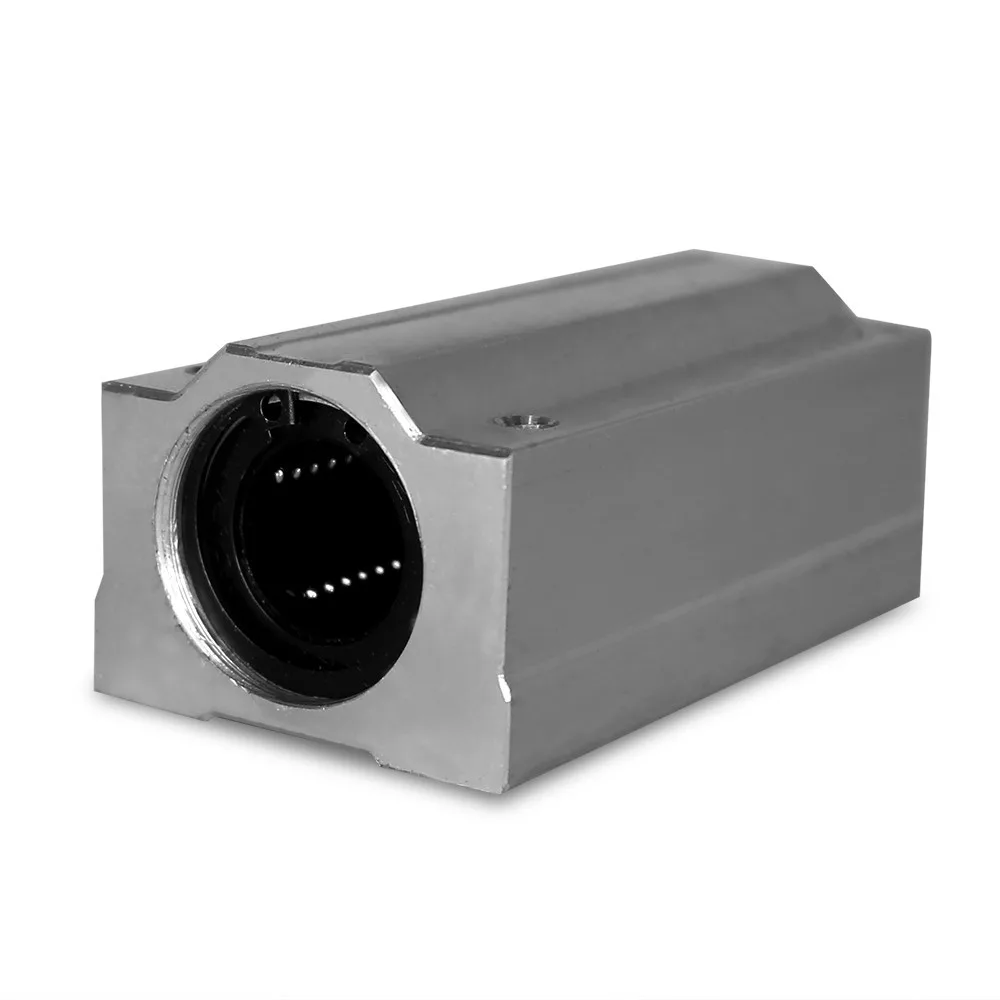

Rulment liniar dublu in carcasa SC8LUU

Detalii

Specification:
Type: SC-L - closed housing
d - Inner diameter: 08 mm
h - Shaft height: 11 mm
H - Total height: 022 mm
W - Total width: 034 mm
L - Total length: 058 mm
B - Hole pitch: 024 mm
C - Hole pitch: 042 mm
Through fixing screw: M3
Fixing thread from below: M4X8
C0 - Static load capacity: 00784N
C - Dynamic load capacity: 431N
Bush type: 2 x LM 8 UU
Applicability temperature: -20 / 80°C
Unit type: Four arresting holes, Double ball bushing unit
Size standard: JIS - Japanese standard
