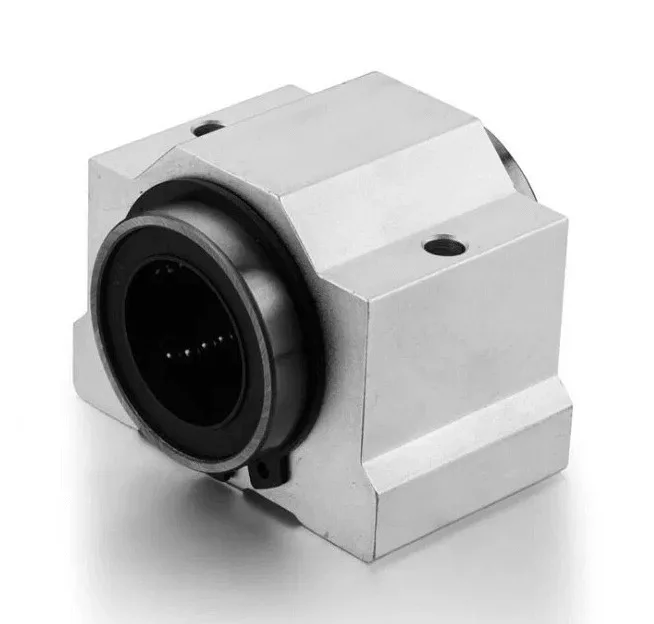

Rulment liniar in carcasa SC12SUU

Pe stoc

5,37 €

(4,51 € + 19% TVA)

Timp de livrare:

2-4 zile lucrătoare

Model 3d descărcabil:

Tip:

SC..SUU

Diametre interne:

12mm

Descriere

Specification:
Type: SC-S - closed housing
d - Inner diameter: 12 mm
h - Shaft height: 15 mm
H - Total height: 028 mm
W - Total width: 042 mm
L - Total length: 030 mm
B - Hole pitch: 030.5 mm
Through fixing screw: M4
Fixing thread from below: M5X12
C0 - Static load capacity: 00590N
C - Dynamic load capacity: 410N
Bush type: 1 x LM 12 UU
Applicability temperature: -20 / 80°C
Unit type: Unit with two arresting holes, single ball bushing
Dimensional standard: JIS - Japanese standard

Info produs

Masa:

74 g/bucăți
