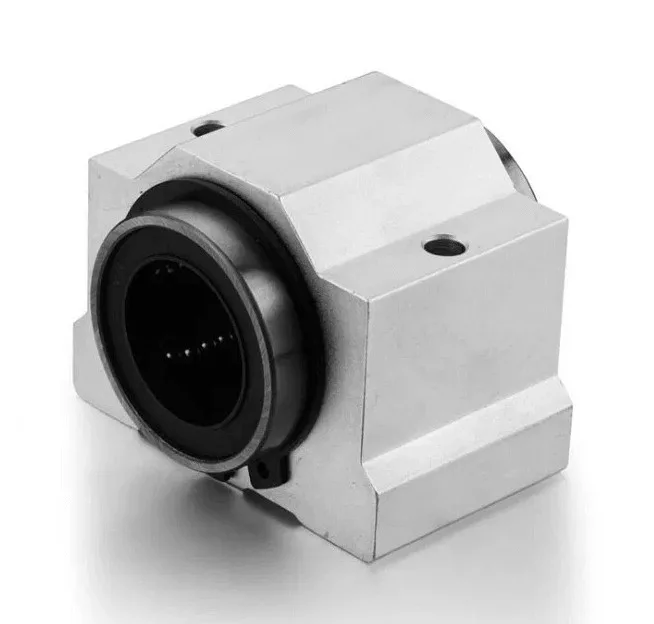

Rulment liniar in carcasa SC16SUU

Descriere

Specification:
Type: SC-S - closed housing
d - Inner diameter: 16 mm
h - Shaft height: 19 mm
H - Total height: 038.5 mm
W - Total width: 050 mm
L - Total length: 037 mm
B - Hole pitch: 036 mm
Through fixing screw: M4
Fixing thread from below: M5X12
C0 - Static load capacity: 01170N
C - Dynamic load capacity: 770N
Bush type: 1 x LM 16 UU
Applicability temperature: -20 / 80°C
Unit type: Unit with two arresting holes, single ball bushing
Dimensional standard: JIS - Japanese standard

Info produs

Masa:

132 g/bucăți
