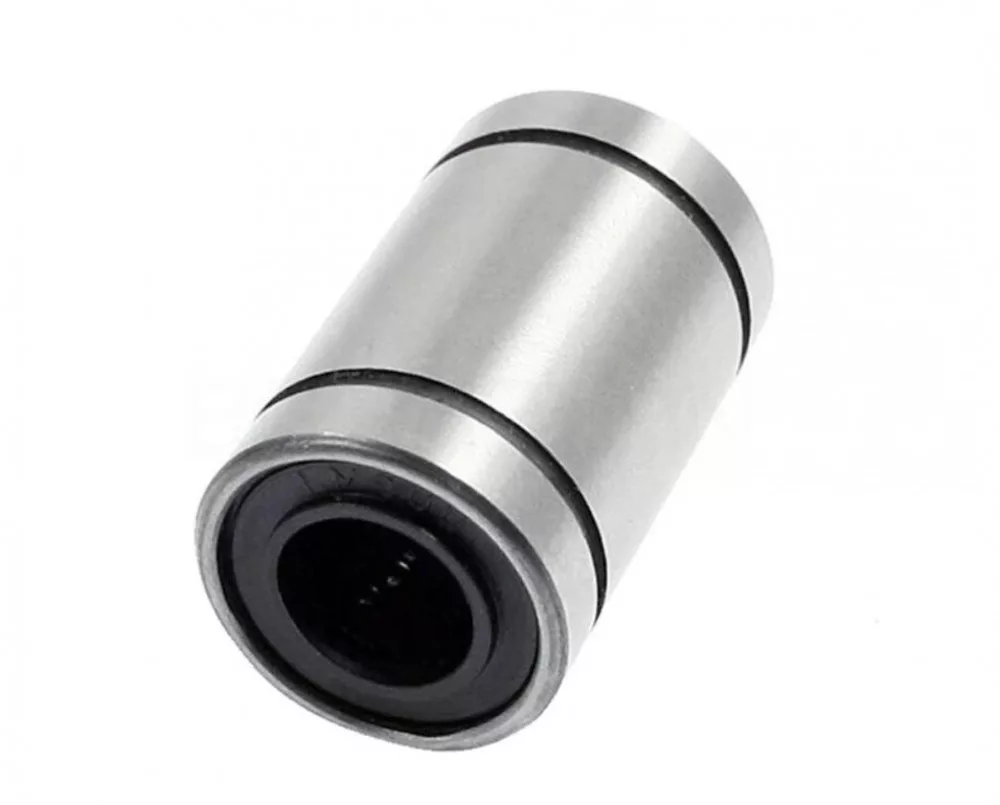

Rulment liniar LM20UU

Name: Rulment liniar LM20UU
Brand: Caxtool
SKU: MBNS03102
Price: 15.78 RON
Availability: InStock

15,78 Lei

(13,26 Lei + 19% TVA)

Numar articol:

MBNS03102

Timp de livrare:

2-4 zile lucrătoare

Model 3d descărcabil:

Tip:

LM..UU

Diametre interne:

20mm

Acțiuni proprii

16 bucăți

Livrăm produsele noastre în stoc în 2-4 zile lucrătoare!

Descriere

Specification:
Type: LM
Flange type: Without flange
Size standard: According to JIS - Japanese standard
Length: Simple - Standard
d - Inner diameter: 020 mm
Inner diameter tolerance: 0 / -0.009 mm
D - Outer diameter: 032 mm
Outer diameter tolerance: 0 / -0.016 mm
L - Total length: 042 mm
Total length tolerance: 0 / -0.2 mm
W - Insertion width: 1.6 mm
B - Insertion distance: 27.3 mm
D1 - Insertion diameter: 30.5 mm
Preload: Standard
Layout: Standard
Eccentricity: 0.015 mm
Number of rows of balls: 5 pcs
Application temperature: -20 / +80 ° C
Static load: 01370 N
Dynamic load: 00882 N
Weight: 0.087kg
