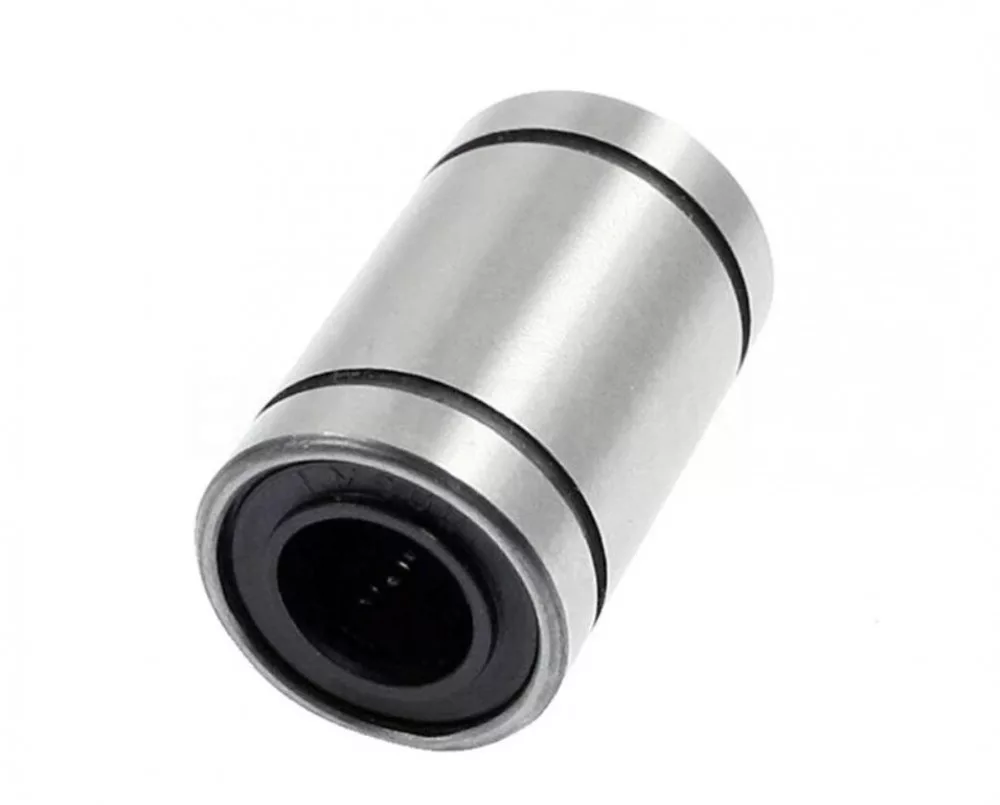

Rulment liniar LM5UU

Pe stoc

14,57 Lei

(12,24 Lei + 19% TVA)

Timp de livrare:

2-4 zile lucrătoare

Model 3d descărcabil:

Tip:

LM..UU

Diametre interne:

5mm

Descriere

Specification:
Type: LM
Flange type: Without flange
Size standard: According to JIS - Japanese standard
Length: Simple - Standard
d - Inner diameter: 005 mm
Inner diameter tolerance: 0 / -0.008 mm
D - Outer diameter: 010 mm
Outer diameter tolerance: 0 / -0.009 mm
L - Total length: 015 mm
Total length tolerance: 0 / -0.12 mm
W - Insertion width: 1.1 mm
B - Insertion distance: 8 mm
D1 - Insertion diameter: 9.6 mm
Preload: Standard
Layout: Standard
Eccentricity: 0.008 mm
Number of rows of balls: 4 pcs
Application temperature: -20 / +80 ° C
Static load: 00206 N
Dynamic load: 00167 N
Weight: 0.004kg

Info produs

Masa:

4 g/bucăți
