Senzor evitare obstacole infraroșu
12,30 Lei
(10,16 Lei + 21% TVA)
Senzor evitare obstacole infraroșu
12,30 Lei
(10,16 Lei + 21% TVA)
Numar articol:
EHGS00756
Timp de livrare:
2-4 zile lucrătoare
Acțiuni proprii
20 bucăți
Livrăm produsele noastre în stoc în 2-4 zile lucrătoare!
Detalii

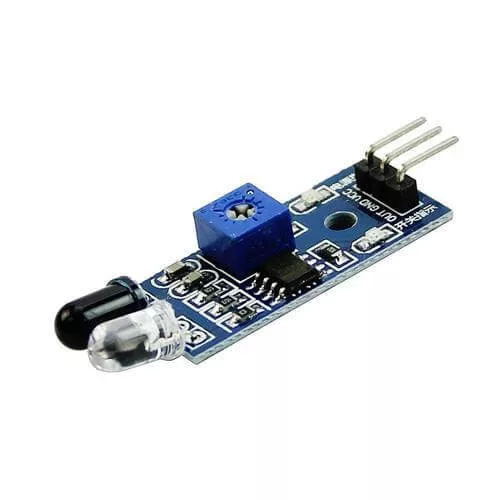

The output port OUT sensor module can be directly connected to the microcontroller IO port , you can directly drive a 5V relay. The module detects the distance 2 ~ 30cm, detection angle 35 °, the distance can detect potential is adjusted. Can be used for 3-5V DC power supply modules. When the power is turned on, the red power indicator light. Using the comparator LM393
Interface:
1. VCC: External 3.3V-5V voltage (can be directly connected to 5v MCU and 3.3v MCU)
2. GND: GND External
3. OUT: Small board digital output interfaces (0 and 1)
Connection : VCC-VCC; GND-GND; OUT-IO
With the screw holes of 3mm , easy fixed installation
Board Size : 3.1CM * 1.5CM / 1.22 * 0.59"
