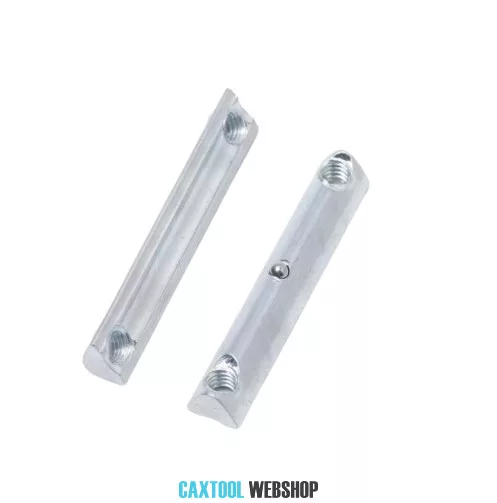

I6 pulita M5, canal 6, 58x10,5x7 mm
10,78 Lei
(8,91 Lei + 21% TVA)
I6 pulita M5, canal 6, 58x10,5x7 mm
10,78 Lei
(8,91 Lei + 21% TVA)
Numar articol:
MIDE04726
Timp de livrare:
2-4 zile lucrătoare

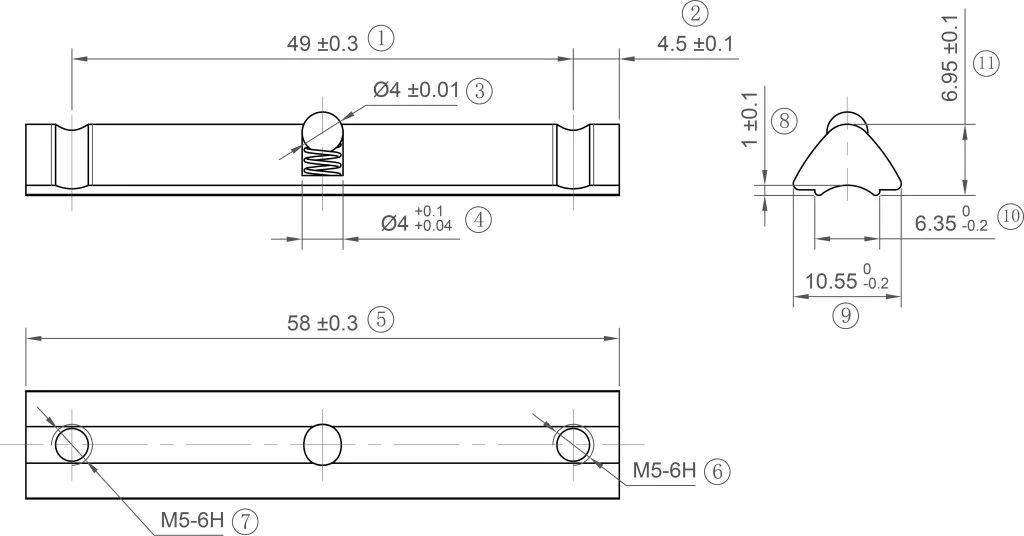

Desen tehnic:
Diametre de filet:
M5
Dimensiuni cârlige:
6mm
Acțiuni proprii
179 bucăți
Livrăm produsele noastre în stoc în 2-4 zile lucrătoare!
Detalii
| Parameters | Values |
Serie: | I6 (Item compatible, groove 6) |
Material: | Carbon steel |
Surface: | Zink plated |
Thread: | M5 |
Mass (g): | 18,8 |
Reference: | 0.0.615.76 |
Other names: |
|
Profiles: |
|
Usage:
T-slots with 2 threads are mainly used for connection with angular elements, thread shape connectors or bolt connectors. Various head shapes of screws made of stainless steel and galvanized steel are available for fastening.
Assembly instruction:
This T-Slot Nut can be twisted into place at any point along the Line 6 profile groove and is held in position by a spring-mounted piece.
