B10 Placă de racordare în T, 40 x 40 mm

Detalii

Parametri	Valori
Serial:	B10 (Bosch compatible, groove 10)
Material:	Aliaj de aluminiu
Suprafață:	Simplu

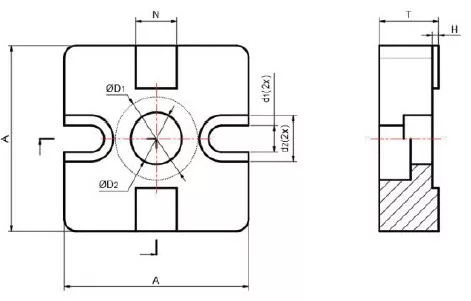

Dimensiuni (mm):	A = 40, N = 10 D1 = 20, D2 = 12,5 d1 = 6,5 d2 = 11, T = 14,5 H = 1,5
Masă (g):	42,3
Referință:	3842532195
Alte denumiri:	T connector
Profiles:	Can be used with the profiles B10 40x40 (MRAM01090)

Utilizare:
The T-connector is used for the stable, unworking 90°connection of two profiles. In other terms, the T-connector is used to amend the strengthening of profile connections.

Materiale de fixare:
2 x Hex. socket head cap screw M6x20. 1x S12x30, 2x T-nut groove 10 M6,

Instrucțiuni de asamblare:

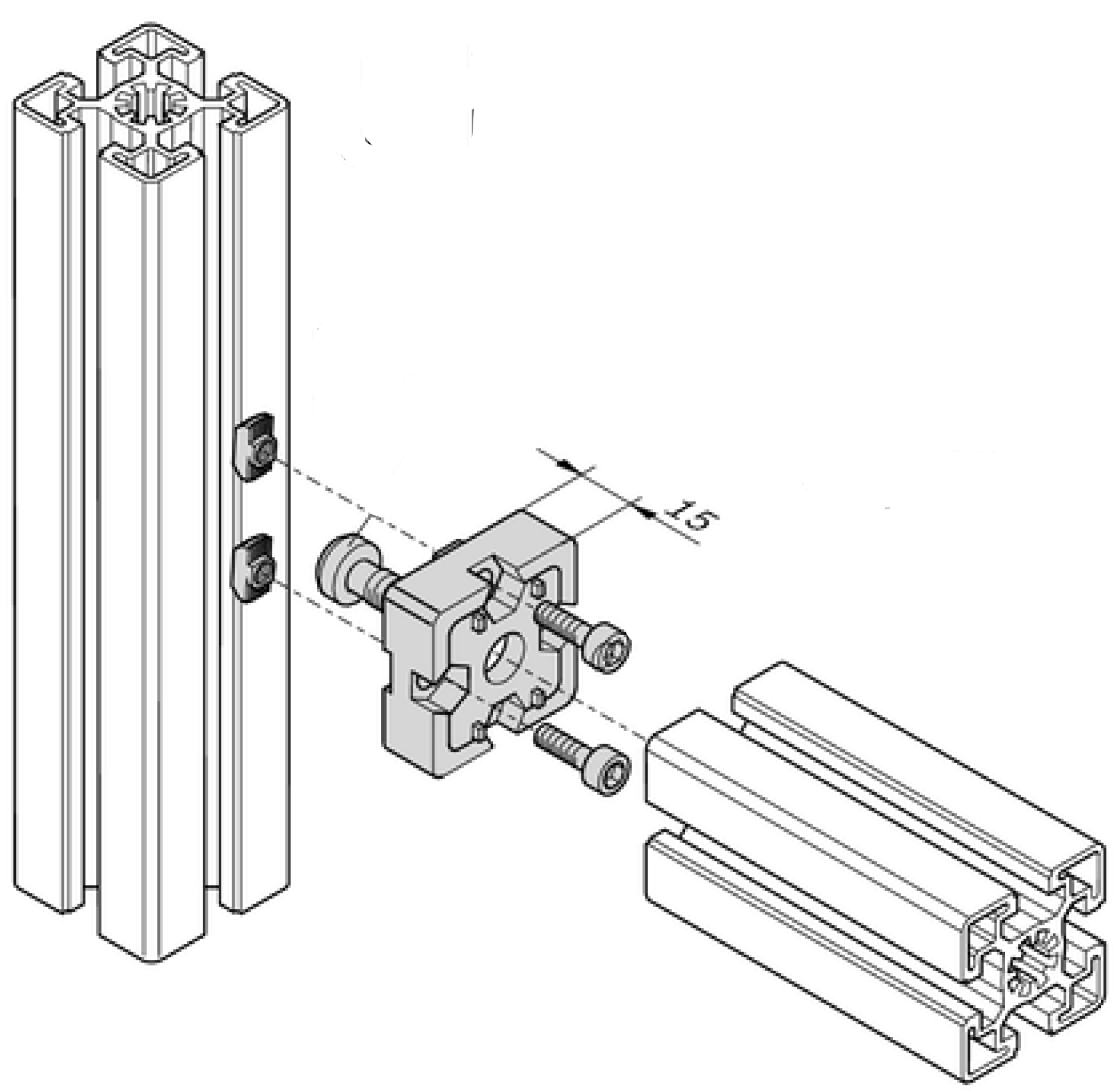

These T-connector plates are used for a stable 90° connection with small machining effort. One M12 Filet must be cut into the core bore of one profile and fix the plate to the profile. Put the T-nuts in the other profile and connect the plate fixed to profile on the right place with screws. Can be built with profile of the Serials 10 40x40.
