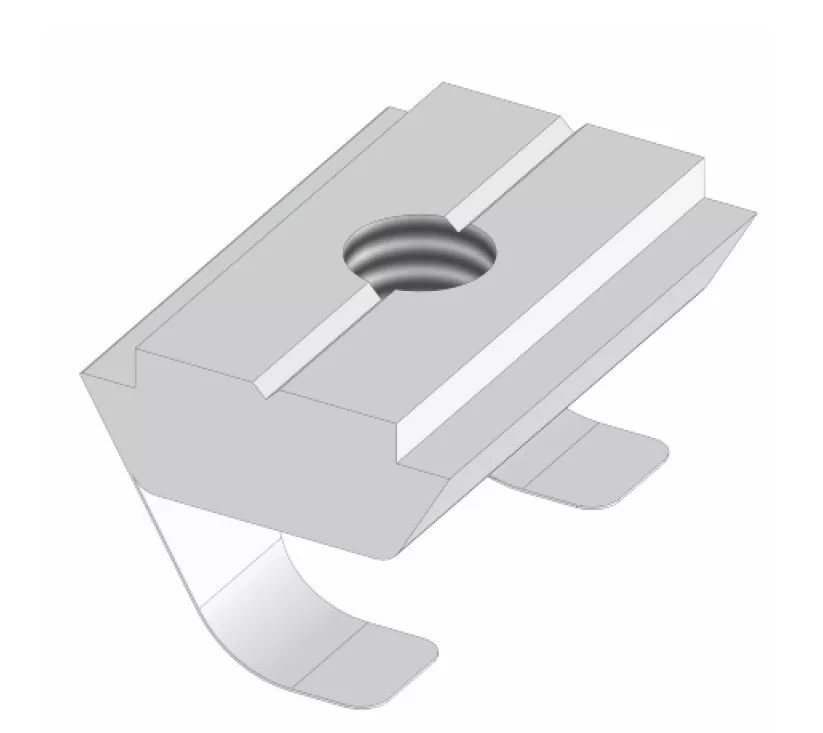

B8 Piuliță autofix M5, canal 8
2,94 Lei
(2,43 Lei + 21% TVA)
B8 Piuliță autofix M5, canal 8
2,94 Lei
(2,43 Lei + 21% TVA)
Numar articol:
MIDE05928
Timp de livrare:
2-4 zile lucrătoare

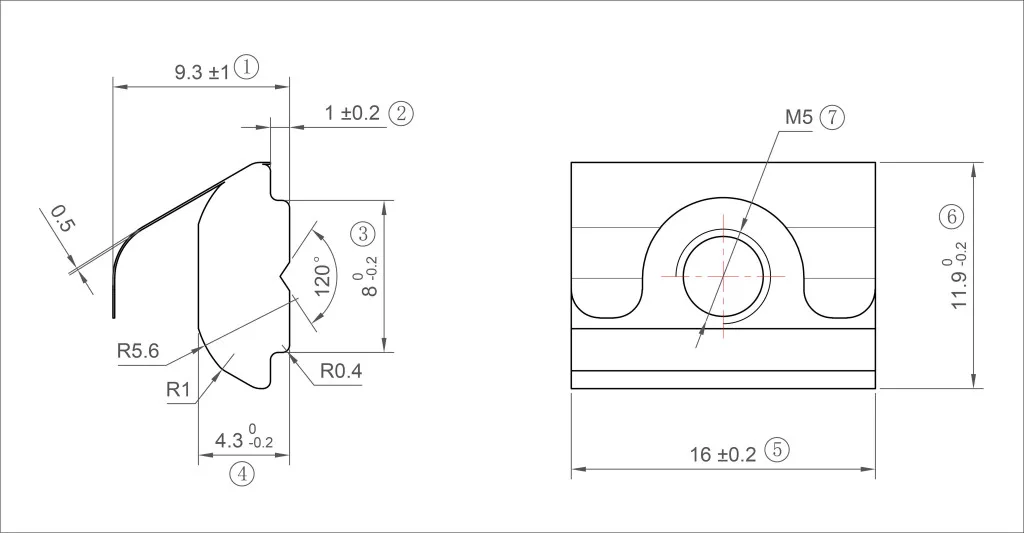

Desen tehnic:
Diametre de filet:
M5
Dimensiuni cârlige:
8mm
Acțiuni proprii
2000 bucăți
Livrăm produsele noastre în stoc în 2-4 zile lucrătoare!
Detalii
| Parametri | Valori |
| Serial: | B8 (Bosch compatible, groove 8) |
| Material: | Carbon Steel 1045+SS304 |
| Suprafață: | Zincat+Plain |
| Filet: | M5 |
| Masă (g): | 4,5 |
| Referință: | 3842529295, 096315EF |
| Alte denumiri: | Roll-in T-slot nut, slide nut, can be tilted up/down, Swivel-in sliding block, with spring |
| Profile aluminiu: | Can be used with the Profile aluminiu B8 30x30, B8 30x60 (MRAM01107, MTMS05019) |
Utilizare:
The sliding block with spring can be inserted directly at the assembly point and fixed in position thanks to attached spring. Profile finishing: not required. Preferred to use for all Profile aluminiu of the Serials 8. Various head shapes of screws made of stainless steel and galvanized steel are available for fastening.

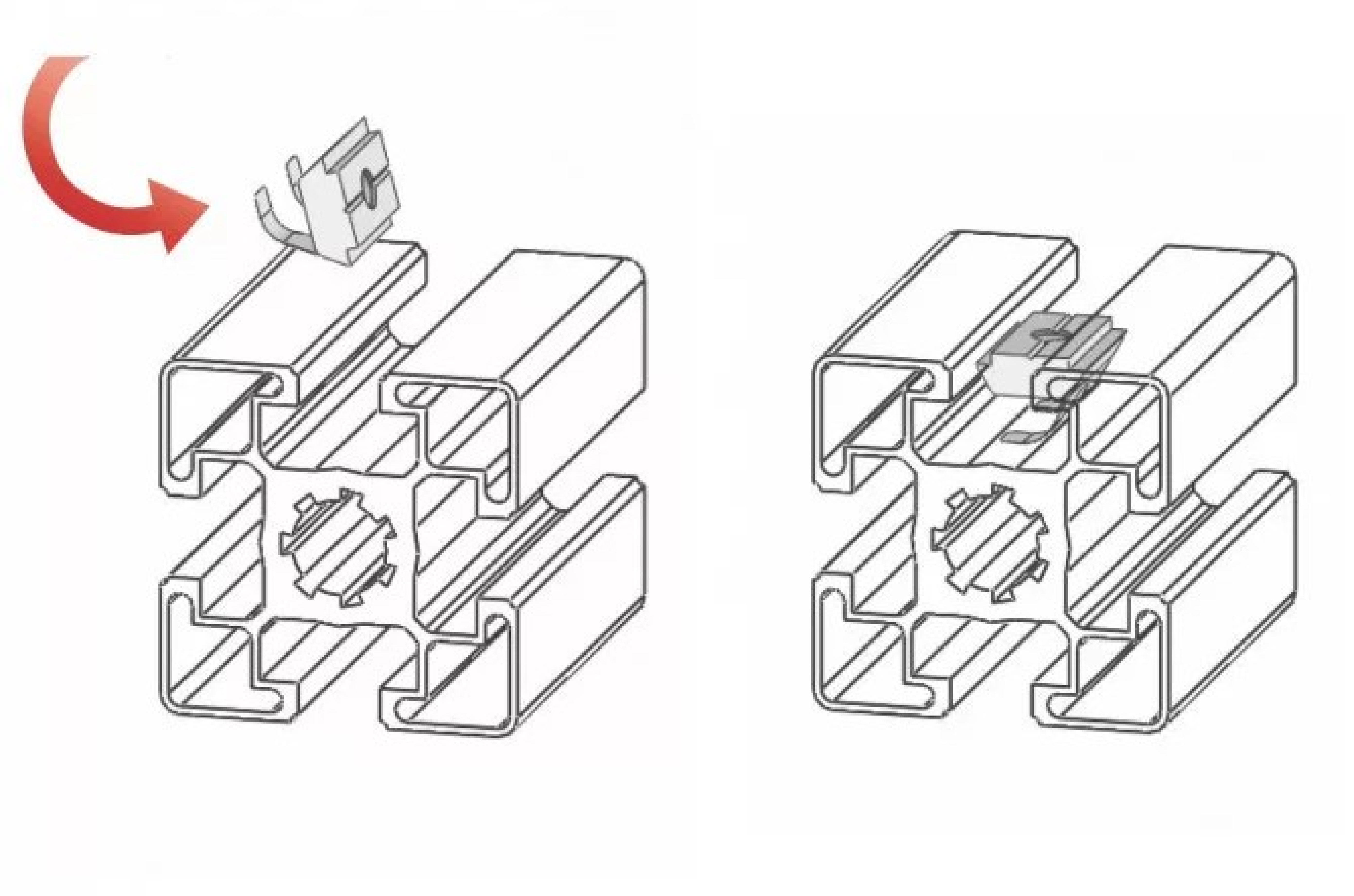

Instrucțiuni de asamblare:
This T-Slot nut can be twisted into place at any point along the Line 8 profile groove and is held in position by a spring-mounted piece.
