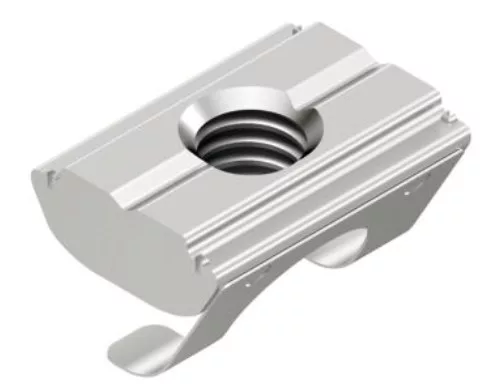

B10 Piuliță autofix M4, canal 10, 20x13,8x5,3 mm
3,30 Lei
(2,73 Lei + 21% TVA)
B10 Piuliță autofix M4, canal 10, 20x13,8x5,3 mm
3,30 Lei
(2,73 Lei + 21% TVA)
Numar articol:
MIDE05930
Timp de livrare:
2-4 zile lucrătoare

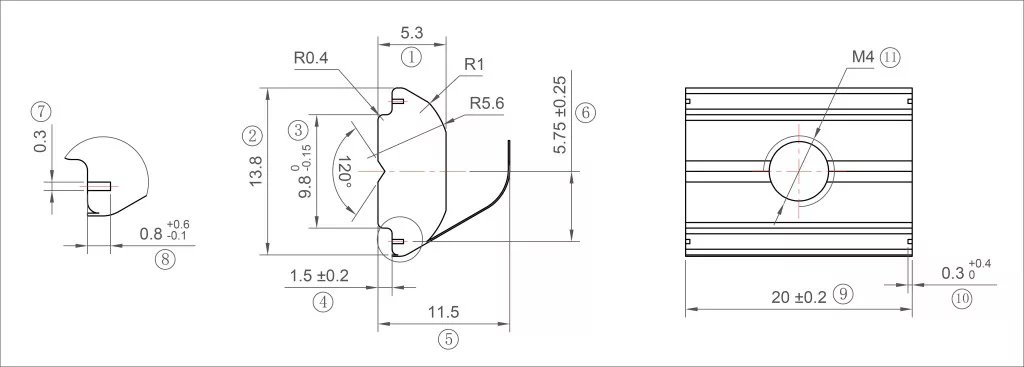

Desen tehnic:
Diametre de filet:
M4
Dimensiuni cârlige:
10mm
Acțiuni proprii
2000 bucăți
Livrăm produsele noastre în stoc în 2-4 zile lucrătoare!
Detalii
| Parametri | Valori |
| Serial: | B10 (Bosch compatible, groove 10) |
| Material: | Carbon Steel |
| Suprafață: | Zincat |
| Filet: | M4 |
| Masă (g): | 8,8 |
| Referință: | 3842541393, 096164F |
| Alte denumiri: | Roll-in T-slot nut, slide nut, can be tilted up/down, Swivel-in sliding block, with spring |
| Profile aluminiu: | Can be used with the Profile aluminiu B10 40x40 .... (MRAM01090, MTMS05021, MTMS05022, MTMS05020) |
Utilizare:
The sliding block with spring can be inserted directly at the assembly point and fixed in position thanks to attached spring. Profile finishing: not required. Preferred to use for all Profile aluminiu of the Serials 10. Various head shapes of screws made of stainless steel and galvanized steel are available for fastening.

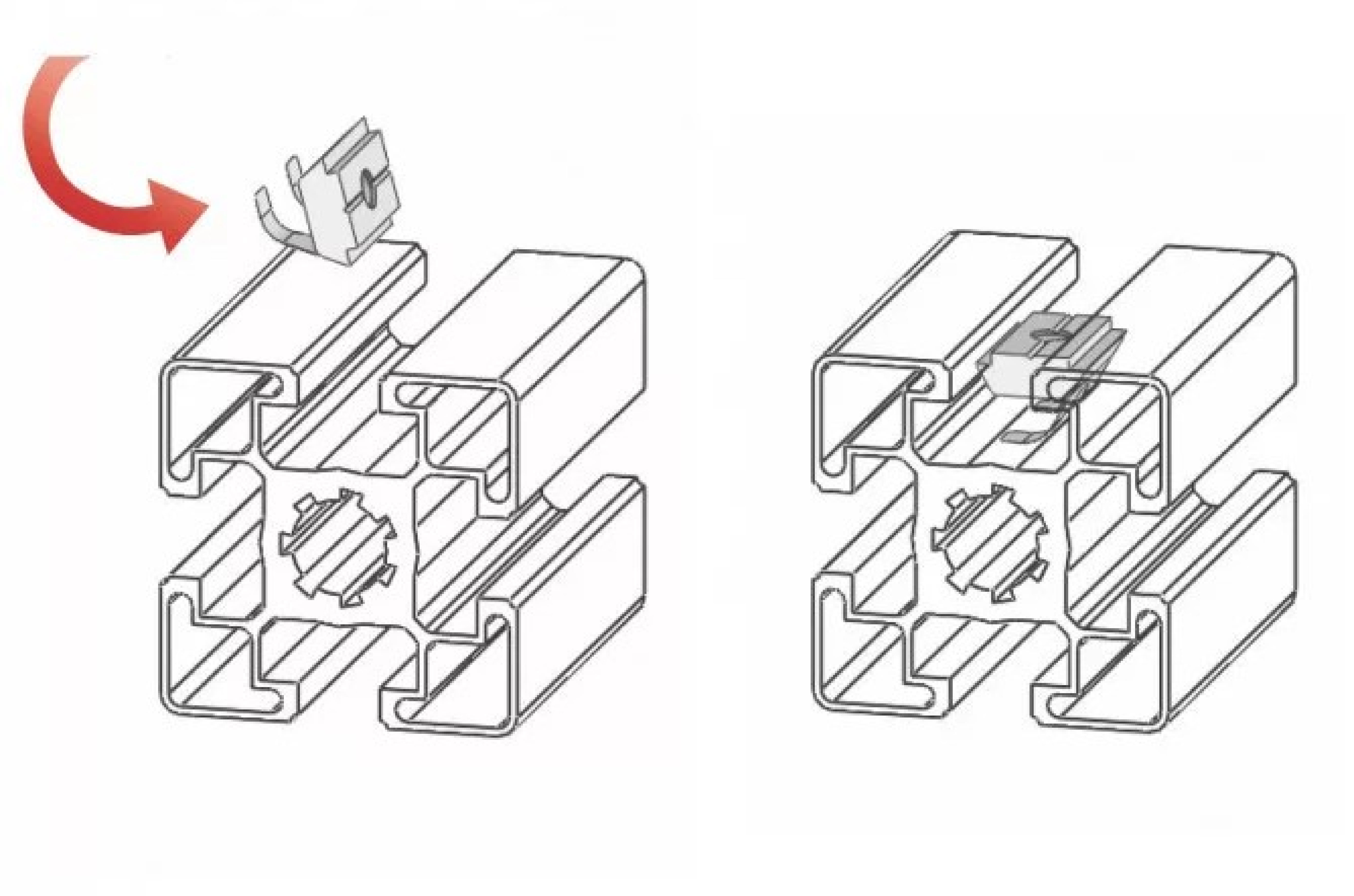

Instrucțiuni de asamblare:
This T-Slot nut can be twisted into place at any point along the Line 10 profile groove and is held in position by a spring-mounted piece.
