I8 Piuliță autofix M6,, canal 8, 76x13,5x7,2 mm

Name: I8 Piuliță autofix M6,, canal 8, 76x13,5x7,2 mm
Brand: Caxtool
SKU: MIDE05937
Price: 10.02 RON
Availability: InStock

10,02 Lei

(8,28 Lei + 21% TVA)

Numar articol:

MIDE05937

Timp de livrare:

2-4 zile lucrătoare

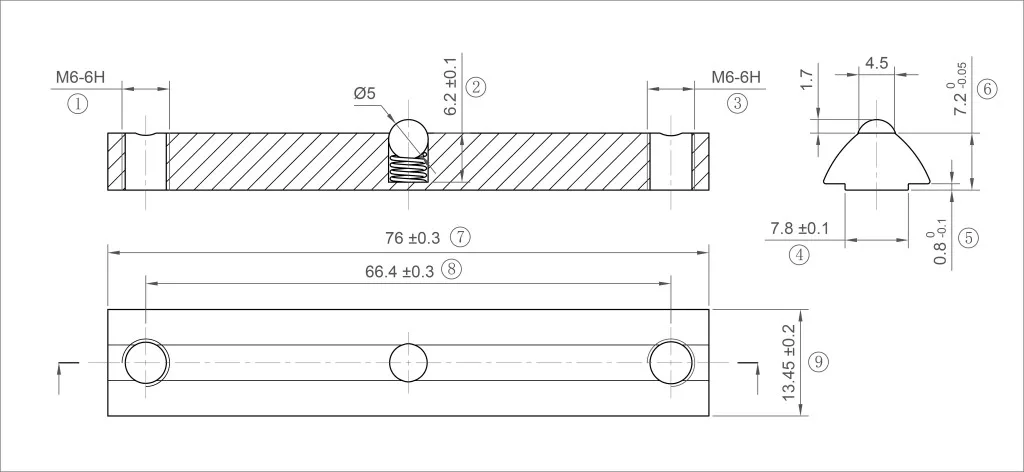

Desen tehnic:

Dimensiunile profilului:

40x40mm

Diametre de filet:

Dimensiuni cârlige:

8mm

Acțiuni proprii

100 bucăți

Livrăm produsele noastre în stoc în 2-4 zile lucrătoare!

Detalii

Parametri	Valori
Serial:	I8 (Item compatible, groove 8)
Material:	Carbon steel, Marbles 304 steel
Suprafață:	Zincat
Filet:	M6
Masă (g):	34,2
Referință:	0.0.723.10
Alte denumiri:	T-slot nut, T-slot 8 with centre bar 2x, Roll in T-slot nut with spring loaded ball
Profile aluminiu:	Can be used with the Profile aluminiu I8 (MRAM01141)

Utilizare:A T-slot nut can be used individually for numerous fastening possibilities. The slide nut is inserted into the slot side of the face or twisted into the slot at any point. The spring-mounted ball pressure button locks the groove stone and ensures a quick assembly of attachments of any kind. Various head shapes of screws made of stainless steel and galvanized steel are available for fastening.

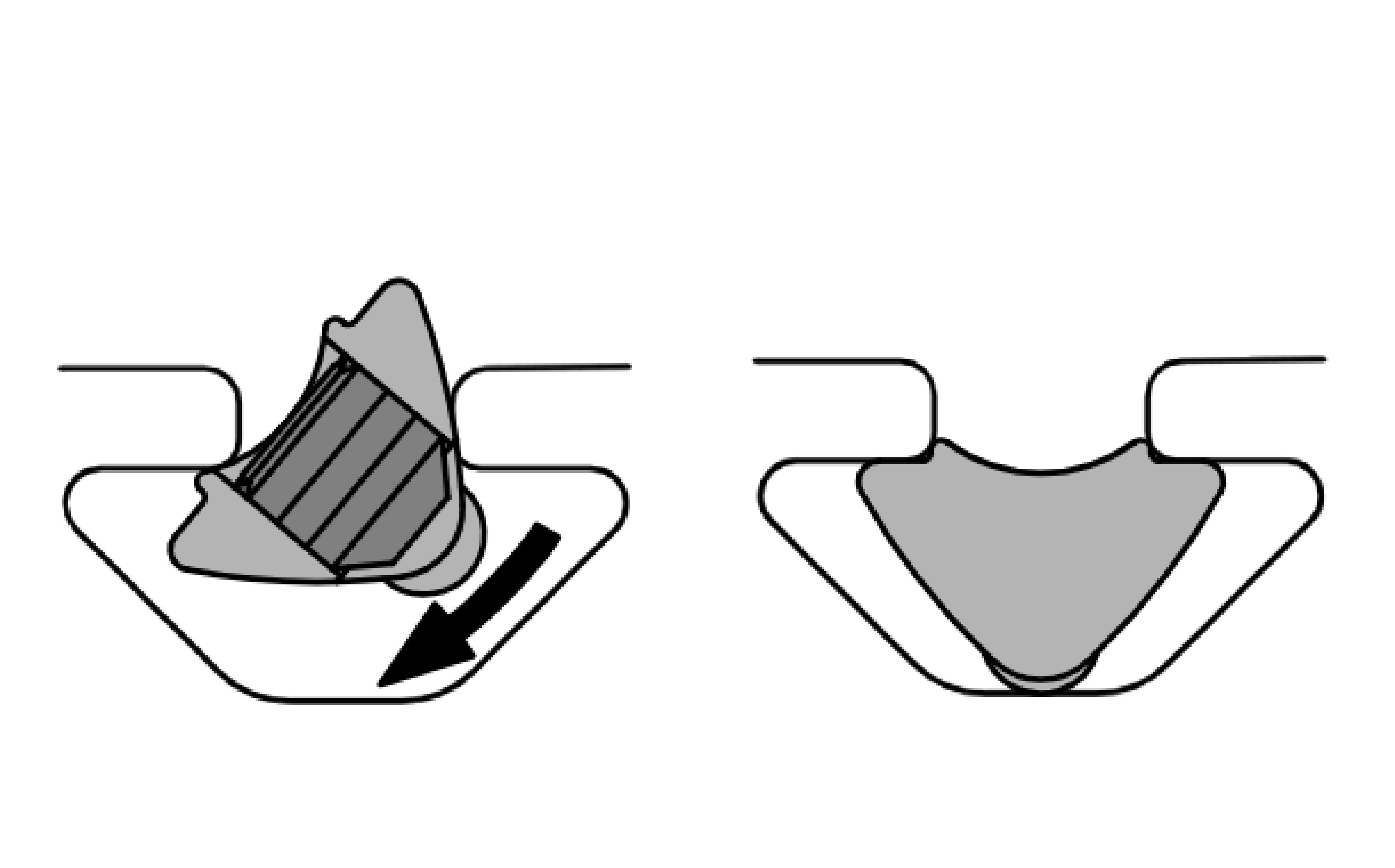

Instrucțiuni de asamblare:This T-Slot nut can be twisted into place at any point along the Line 8 profile groove and is held in position by a spring-mounted piece.
