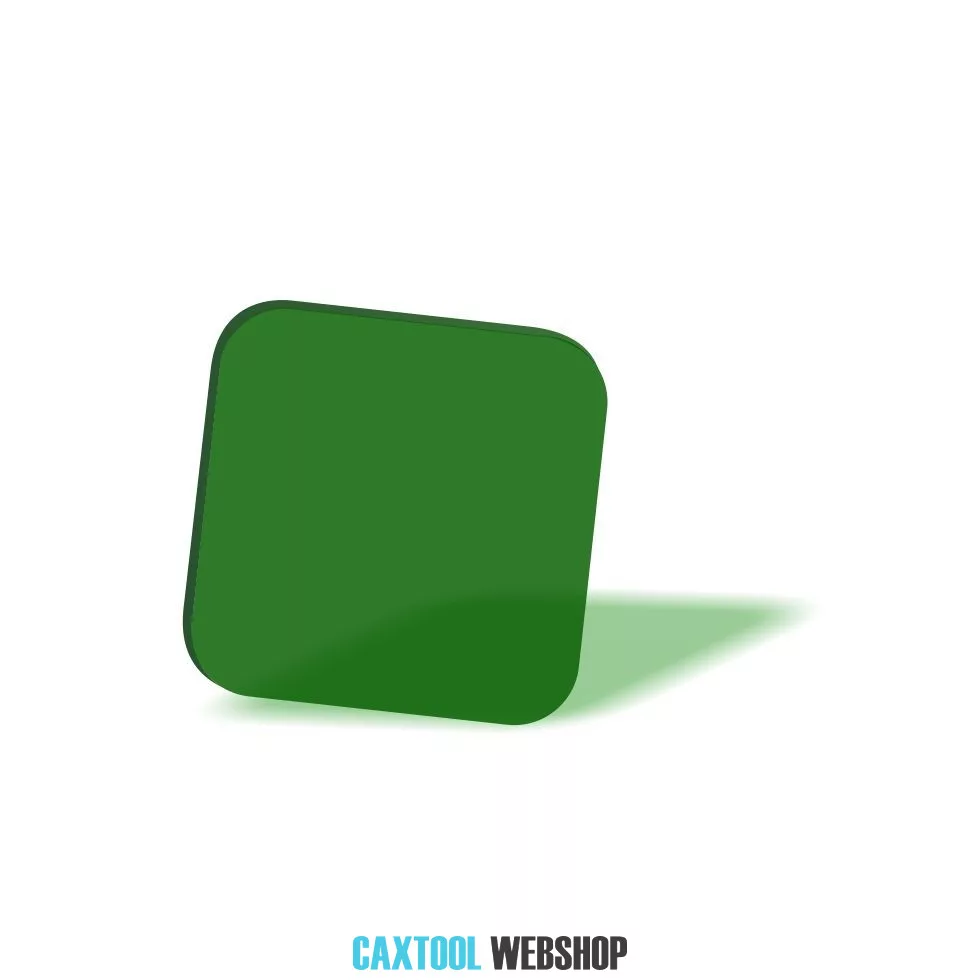

Sticlă de siguranță Laservision P1H09 (3 mm)
Numar articol:
LLVN04218
Timp de livrare:
2-4 zile lucrătoare
Documente atașate:
Acțiuni proprii
2230749 bucăți
Livrăm produsele noastre în stoc în 2-4 zile lucrătoare!
Detalii
The laser protection window 000.P1H09.1001 from laservision is suitable for Nd:YAG or fiber lasers. It is certified according to DIN EN 60825-4 and CE marked accordingly. There is a protection (OD6 +) in the NIR range at 1064nm-1100nm as well as an OD4 + in the red wavelength range from 630nm to 656nm. This enables use in machines with seam tracking sensors or similar measuring systems. It has a daylight transmission of around 18% and has sufficient visual brightness and color vision. The laser protection window is available in various standard and customer-specific dimensions up to a size of 3000 x 2000 mm²
Specification:
FILTER MATERIAL: Plastic
MATERIAL: PMMA
PROTECTION RANGE: near infraredvisible
FILTER TECHNOLOGY: Absorption filter
VISUAL BRIGHTNESS: Sufficient
PROTECTION CLASS / NORM: EN 60825
FILTER THICKNESS: ca. 3mm
COLOUR RECOGNITION: Sufficient
COLOUR: dark green
VLT (APPROX.): 18%
