(808,50 Lei + 19% TVA)

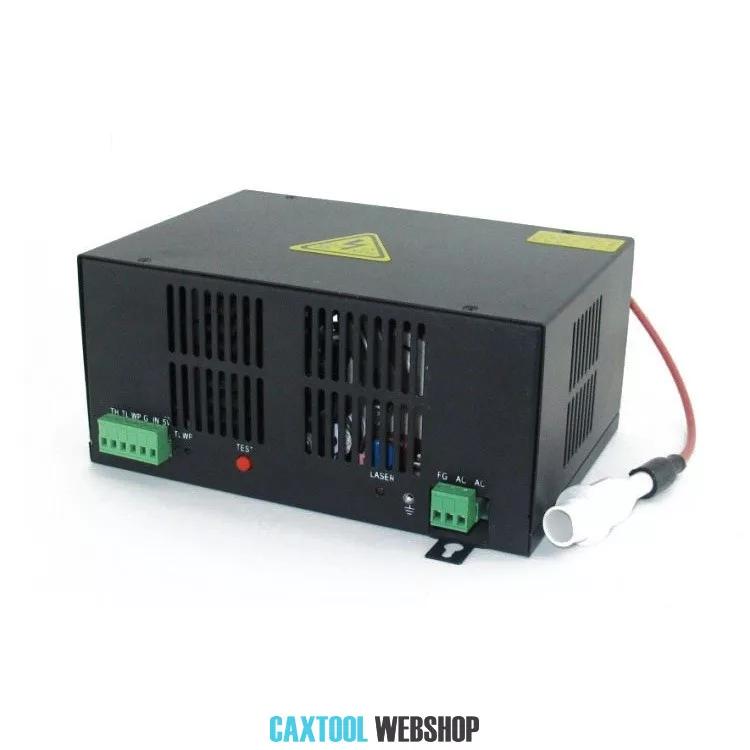

Specification:Input Voltage: AC220V or AC110V(to be specified when placing order)AC frequency 47—440HZMax Input Power: 350WMax Input Current: 3AMax Output Voltage: DC 25KVMax Output Current: DC 20MAEfficiency: ≥90﹪(full load)Mean Time Between Failure (MTBF): ≥10000HResponse Speed: ≤1ms(from the switch Signal is given to the output current up to 90% of the setting current)Control Interface: TTL level switch control; high or low effective level can be chosen (details refer to the control terminal specification)Withstand Voltage: Input-Output, Input-Shell: AC1500V 10MA 60S; Output negative is connected with machine shell.Protection: can work in open-circuit condition for a short time(Require a good protective earthing and avoid arc between the positive and the machine shell)Environment: Operating Temperature:-10~40℃),Relative Humidity (RH)≤90﹪Cooling: Way Force-Air Cooling (FAC)Dimension: L×W×H=167*144*97(mm)Color: Golden Yellow , Black
