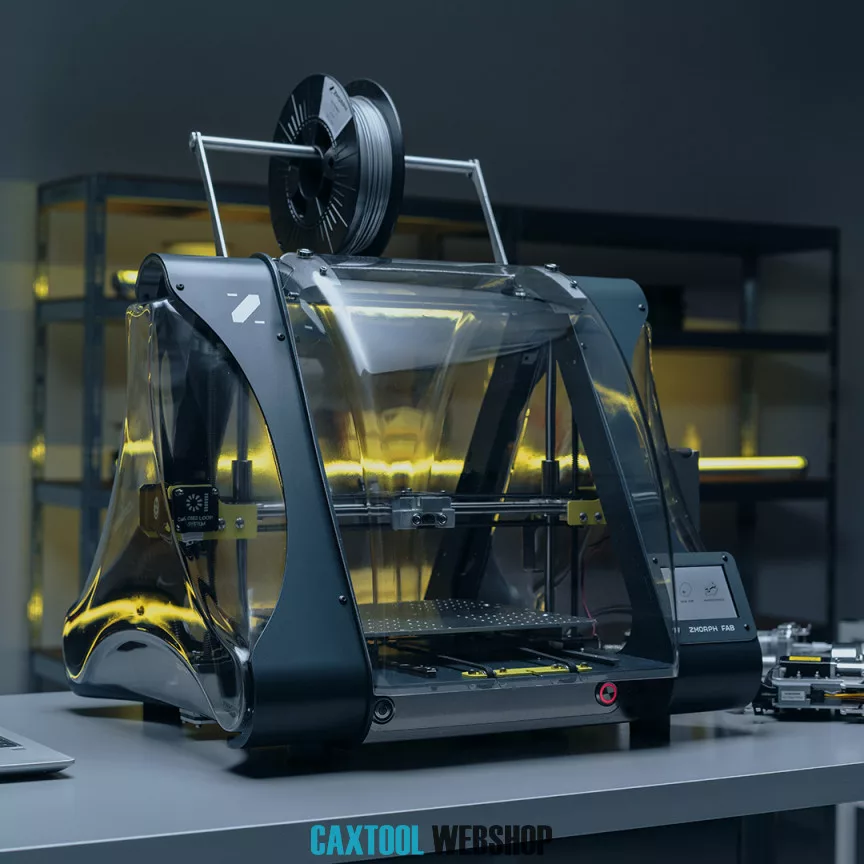

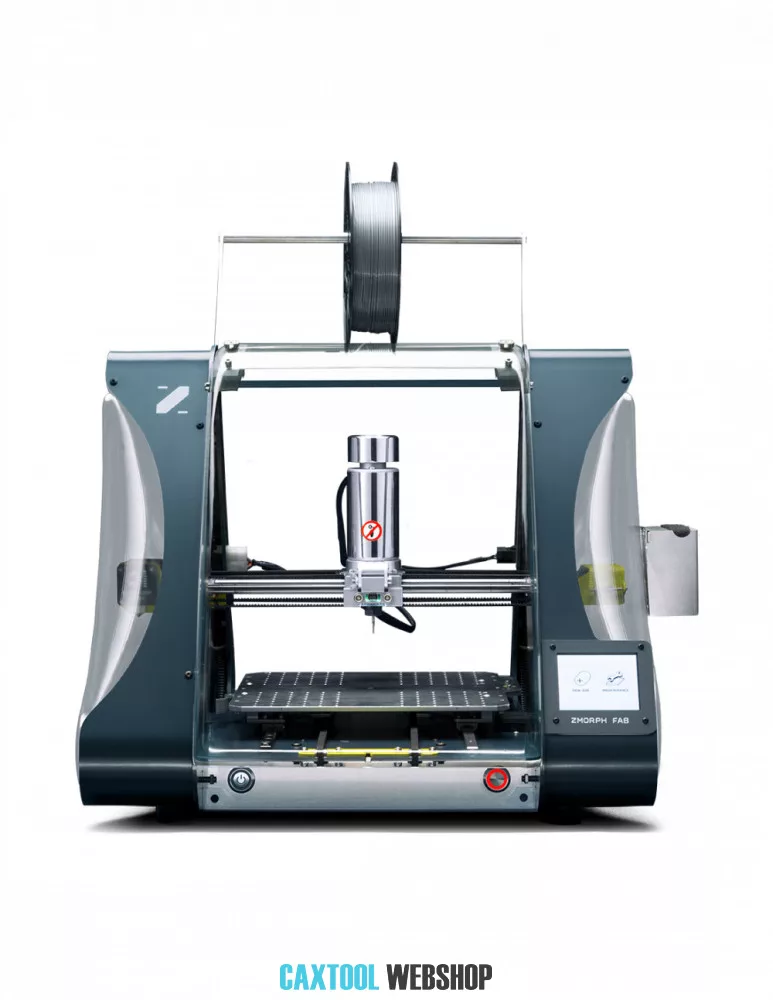

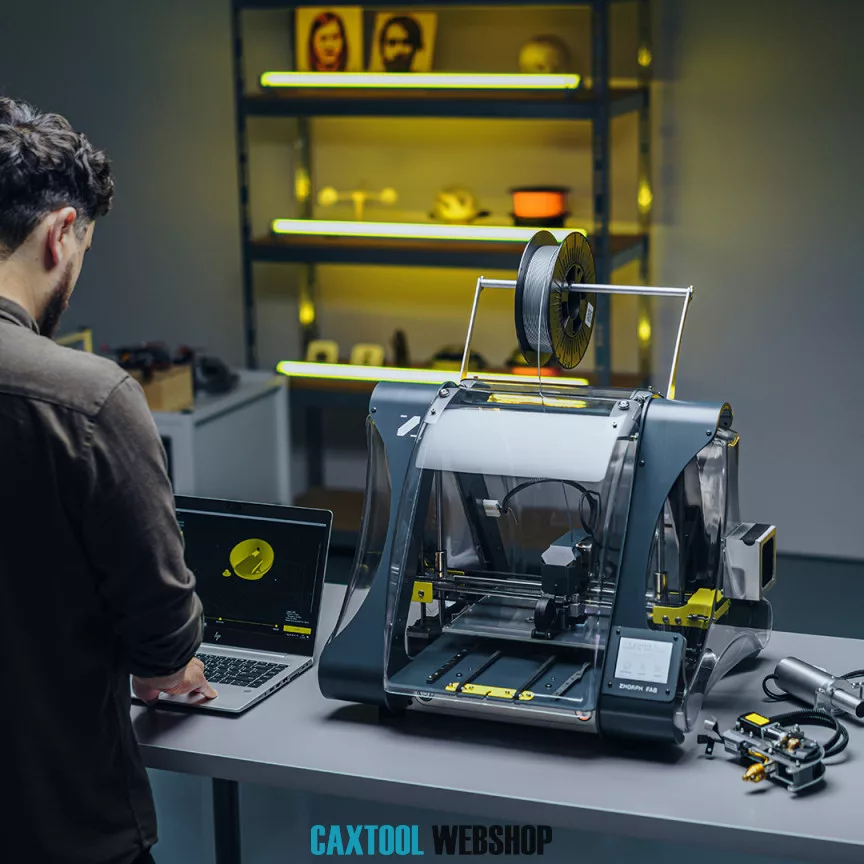

Zmorph FAB All-in-One set

Specification:
Machine parameters (3D printing):
Printing technology: FFF - (ang. Fused Filament Fabrication)
Toolhead:
:Single 1.75 [mm],
:Dual Extruder toolhead 1.75 [mm]
Layer resolution: 0.05 - 0.4 [mm]
Minimum wall thickness: 0.4 [mm]
Dimensional accuracy: +/- 0.2 [mm]
Work area leveling method: Automatic, Manual
Work area :235 x 250 x 165 [mm]
Material container: Spool, Reel
Material diameter: 1.75, 3.00 [mm]
Nozzle diameter: 0.3, 0.4, 0.6 [mm]
Support structures: Mechanically and chemically removed - printed with the same material as the model
Connectivity :USB, Ethernet, SD card
Available materials: PLA, ABS, PET, Nylon, PVA, HIPS, ASA, TPE, PP, PC, PMMA, PC/ABS
Third party materials: Applicable
Work speed :40 [mm/s]
Travel speed :120 [mm/s]
Machine parameters (laser engraving):
Toolhead :Laser
Laser spot size for 50mm :0.1 x 0.1 [mm]
Laser spot size for 80mm :0.1 x 0.18 [mm]
Wavelength :450 [nm]
Laser class :4
Laser power :2.8 [W]
Noise :40 [dB]
Work area leveling method :Manual
Work area :235 x 250 x 85 [mm]
Work speed :1~15 [mm/s]
Travel speed :120 [mm/s]
Available Materials :Wood, wood-like, leather, paper, cardboard, felt, foil, laminate, EPP, EVA Foam, CCL FR4
Machine parameters (milling):
Toolhead :CNC spindle
Spindle max power :300 [W]
Noise :70 [dB]
Work area leveling method: Manual
Work area :235 x 250 x 85 [mm]
Work speed :0.1 ~ 20 [mm/s]
Travel speed :120 [mm/s]
Available Materials :ABS, Nylon, HDPE, PTFE, PC, PP, POM, PMMA, PVC, HIPS, LDPE, PET, Carbon, CCL FR4, Dibond, TCF, Wood, Wood-like, Aluminum, Brass, Copper, Cardboard, Wax, Modeling board, Styrodur:
Tool holding: ER-11 collet
Temperature parameters:
Maximum Printing Temperature (extruder) :max. 250 [°C]
Maximum Printing Temperature (Bed) :max. 125 [°C]
Ambient Operation Temperature: 15 ~ 30 [°C]
Storage Temperature :-10 ~ 40[°C]
Electrical parameters:
AC Input:
:100 [VAC] ~ 4 [A] 50/60 [Hz];
:240 [VAC] ~ 2 [A] 50/60 [Hz]
Maximum Power Consumption: 350 [W]
Power Consumption with single-head extruder :220 [W]
Power Consumption with Dual-head extruder :230 [W]
Power Consumption with CNC toolhead :330 [W]
Power Consumption with Laser toolhead :80 [W]
Software:
Software Bundle :Voxelizer
Supported File Types :.stl, .obj, .step, .dxf, .png, .bmp
Supported software for PCB :To create PCB on ZMorph we are using modified FlatCAM version, and it accepts gerber files that are generated by Eagle
Supported Operating Systems:
:Windows 7/10 (64 bit) /
:Mac OS (10.13 or higher) /
:Linux (experimental)
Weight and physical dimensions:
Printer without a spool holder :520 x 500 x 450 [mm]
Printer with a spool holder :520 x 500 x 570 [mm]
Dimensions of the transport box :600 x 600 x 570 [mm]
Full set weight: 28.70 [kg]
Printer weight :14.45 [kg]
Single Plastic Extruder 1.75 weight :0.70 [kg]
Dual PRO Extruder weight :1.00 [kg]
CNC PRO Milling Toolhead weight :0.90 [kg]
Laser PRO Toolhead weight :0.32 [kg]
Thick Paste Extruder weight :0.60 [kg]
