Zmorph FAB Bundle box

Specification:
Machine parameters (laser engraving):
Toolhead :Laser
Laser spot size for 50mm: 0.1 x 0.1 [mm]
Laser spot size for 80mm: 0.1 x 0.18 [mm]
Wavelength :450 [nm]
Laser class: 4
Laser power: 2.8 [W]
Noise :40 [dB]
Work area leveling method: Manual
Work area :235 x 250 x 85 [mm]
Work speed :1~15 [mm/s]
Travel speed :120 [mm/s]
Available Materials :Wood, wood-like, leather, paper, cardboard, felt, foil, laminate, EPP, EVA Foam, CCL FR4

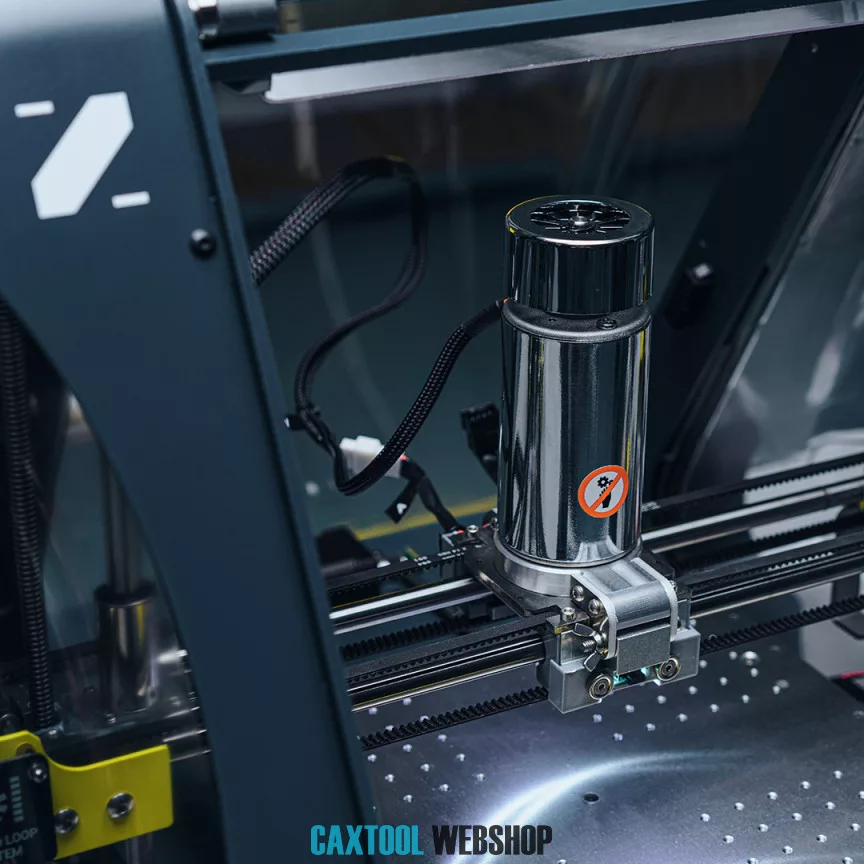

Machine parameters (milling):
Toolhead: CNC spindle
Spindle max power: 300 [W]
Noise: 70 [dB]
Work area leveling method :Manual
Work area :235 x 250 x 85 [mm]
Work speed :0.1 ~ 20 [mm/s]
Travel speed :120 [mm/s]
Available Materials :ABS, Nylon, HDPE, PTFE, PC, PP, POM, PMMA, PVC, HIPS, LDPE, PET, Carbon, CCL FR4, Dibond, TCF, Wood, Wood-like, Aluminum, Brass, Copper, Cardboard, Wax, Modeling board, Styrodur
Tool holding: ER-11 collet
Temperature parameters:
Maximum Printing Temperature (extruder): max. 250 [°C]
Maximum Printing Temperature (Bed) :max. 125 [°C]
Ambient Operation Temperature: 15 ~ 30 [°C]
Storage Temperature: -10 ~ 40[°C]
Electrical parameters:
Bemenet / AC Input:
:100 [VAC] ~ 4 [A] 50/60 [Hz];
:240 [VAC] ~ 2 [A] 50/60 [Hz]
Maximum Power Consumption: 350 [W]
Power Consumption with single-head extruder: 220 [W]
Power Consumption with Dual-head extruder :230 [W]
Power Consumption with CNC toolhead :330 [W]
Power Consumption with Laser toolhead :80 [W]
Software:
Software Bundle: Voxelizer
Supported File Types :.stl, .obj, .step, .dxf, .png, .bmp
Supported software for PCB : To create PCB on ZMorph we are using modified FlatCAM version, and it accepts gerber files that are generated by Eagle
Supported Operating Systems:
:Windows 7/10 (64 bit)
:Mac OS (10.13 or higher)
:Linux (experimental)
Weight and physical dimensions:
Printer without a spool holder: 520 x 500 x 450 [mm]
Printer with a spool holder :520 x 500 x 570 [mm]
Dimensions of the transport box: 600 x 600 x 570 [mm]
Full set weight: 28.70 [kg]
Printer weight :14.45 [kg]
Single Plastic Extruder 1.75 weight :0.64 [kg]
Single Plastic Extruder 3.00 weight: 0.71 [kg]
Dual PRO Extruder weight :1.00 [kg]
CNC PRO Milling Toolhead weight :0.90 [kg]
Laser PRO Toolhead weight :0.32 [kg]
Thick Paste Extruder weight: 0.60 [kg]
